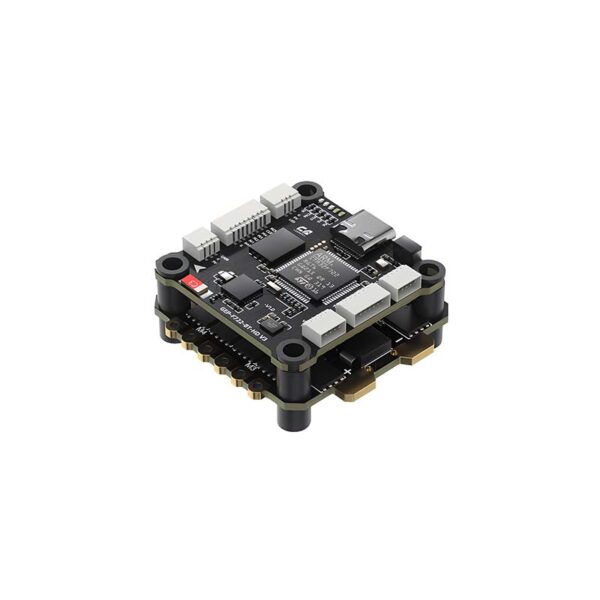

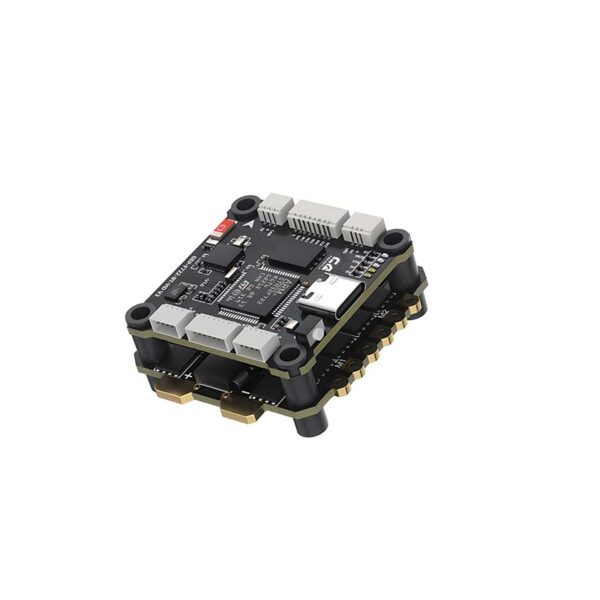

LJIEE TAKER F722 BT 32Bit 50A STACK

Features

• Uses mainstream STM32F722 chip
• Equipped with the latest 42688-P gyroscope
• 512M black box storage
• Supports Bluetooth parameter tuning
• Integrated LC filter
• Upgraded Type-C USB interface
• Paired with LJIEE-BL32 50A 96K 4IN1 32Bit ESC for silky-smooth flight
• Directly plugs into the DJI Air Unit
• Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
• Integrated barometer
• 9V@2.5A + 5V@3A dual independent BEC

Specifications

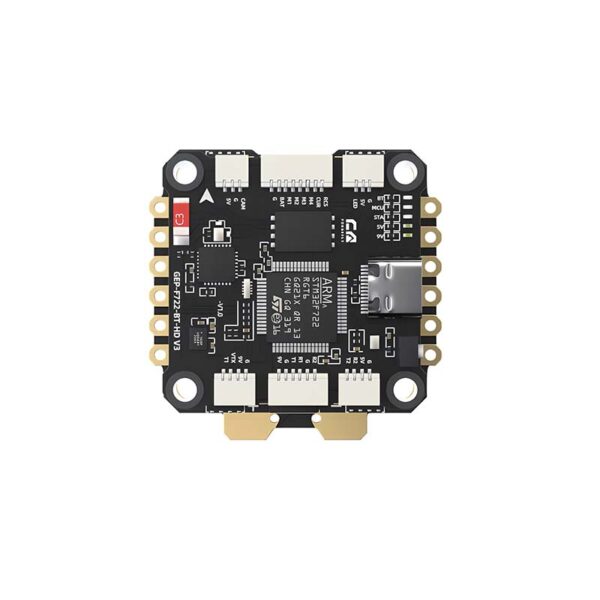

GEP-F722-BT-HD V3 Flight Controller

• MCU: STM32F722
• IMU: ICM42688-P (SPI)
• Air Unit Connection: Directly plugs into the DJI Air Unit
• Black Box: 512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V@3A, 9V@2.5A dual BEC
• Firmware Target: LJIEE F722_BT_HD_V3
• Size: 36.9×36.9mm; mounting holes: 30.5×30.5mm (φ4mm hole becomes φ3mm with silicone shock-absorbing ring)
• Input Voltage: 3-6S LiPo
• UART: 5 groups (UART4 fixed for Bluetooth)
• Power Filter: Integrated LC filter
• Weight: 8.2g

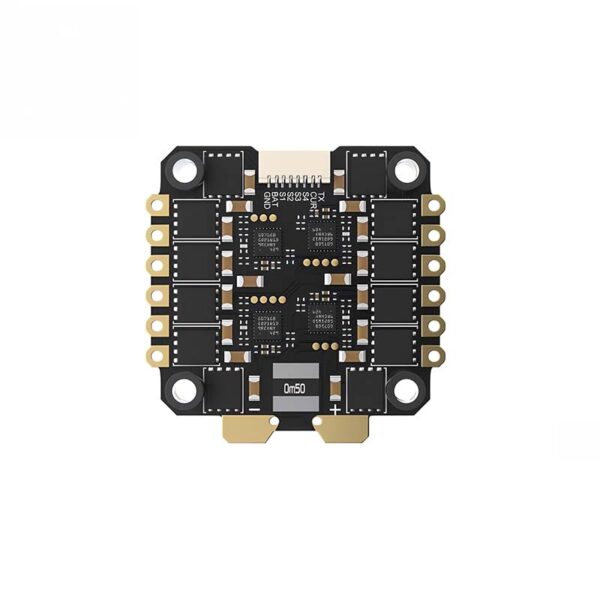

GEP-BL32 50A 96K 4IN1 ESC

• Model: LJIEE BL32 50A 96K 4IN1 ESC
• Input Voltage: 3-6S Lipo
• Continuous Current: 50A
• Burst Current: 55A (5 seconds)
• Galvanometer: Supported
• Telemetry: Supported
• Supported Protocol: Dshot 150/300/600
• Size: 42.5×42.1mm; mounting holes: 30.5×30.5mm
• Weight: 14g
• Target: ST_G0_05 – 31.92
• Note: Pre-installed with BL32 test firmware (extensively tested for safety and reliability). AM32 is also supported (requires customer flashing).

Includes

• 1 x FC board
• 1 x ESC board
• 1 x Capacitor
• 1 x O3 3-in-1 connection cable
• 1 x FC adapter cable
• 1 x sh1.0 4pin silicone cable
• 1 x Camera connection cable
• 1 x VTX connection cable
• 1 x XT60 power cable
• 4 x M3×30 screws
• 4 x M3×25 screws
• 8 x Nylon nuts
• 12 x Silicone anti-shake pads
