LJIEE EM2810 1280KV/1350KV Motor

# The new EM series EM2810 motors are designed for long-range FPV, featuring a high-strength M5 steel shaft, high-torque magnetic circuit design, and a 19mmx19mm base.
# Two models are available:
  • 1280KV: 1160W max watt, 54A peak current, 46mΩ interphase resistance, φ33mmx23.1mm dimension.
  • 1350KV: 1240W max watt, 61A peak current, 43mΩ interphase resistance, φ33mmx20.1mm dimension.
# Both work with 7-8inch propellers, 50A-60A ESC, and 25.2V (6S LiPo) input, featuring N52H magnets, NSK/NMB bearings, 12N14P configuration, single-strand copper winding, and 69.5g weight (with wire). They suit 7-8 inch long-range FPV.
Included are 1 motor, 4 M3*9 round head screws, and 1 M5 anti-slip nut.
Categories: , Tags: , , Brand:
Inquire Now

    Feature

    • New EM series motors, mainly designed for long-range FPV
    • High-strength M5 steel shaft
    • High torque magnetic circuit design
    • 19mmx19mm base

    Specifications

    ITEM: EM2810-1280KV

    • Model: EM2810 1280KV Motor
    • Max Watt: 1160W
    • Peak current: 54A
    • Interphase resistance: 46mΩ
    • Propeller: 7-8inch Propeller
    • Magnet: N52H
    • Bearing type: NSK/NMB
    • Configuration: 12N14P

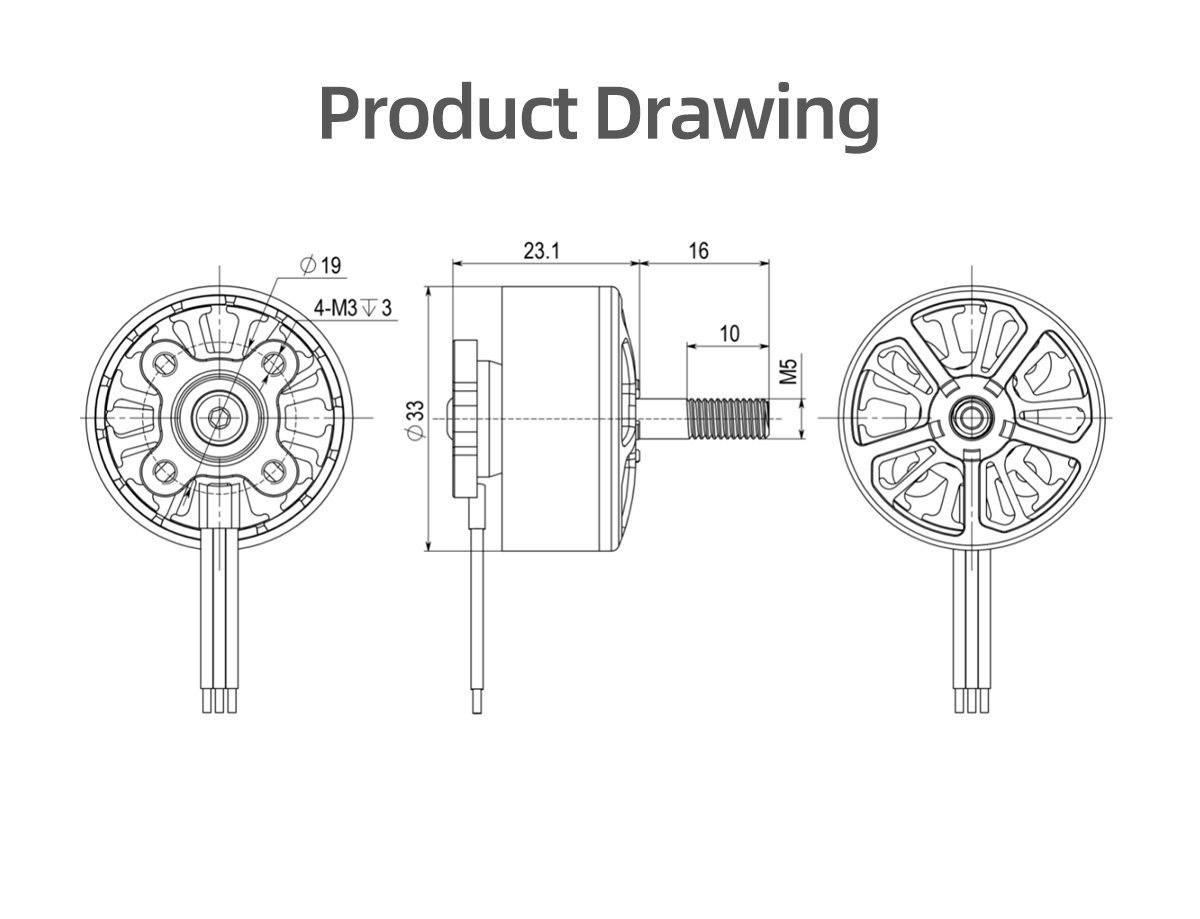

    • Dimension: φ33mmx23.1mm
    • Shaft Diameter: φ5mm
    • Shaft Protruding Length: 16mm
    • Mounting holes: 19mmx19mm
    • Lead: 260mm/18AWG
    • ESC: 50A-60A
    • Input Volts: 25.2V（6S LiPo)
    • Winding: Single strand copper winding
    • Weight: 69.5g(included wire)
    • Suitable for: 7-8 inch long-range FPV

    ITEM: EM2810-1350KV

    • Model: EM2810 1350KV Motor
    • Max Watt: 1240W
    • Peak current: 61A
    • Interphase resistance: 43mΩ
    • Propeller: 7-8inch Propeller
    • Magnet: N52H
    • Bearing type: NSK/NMB
    • Configuration: 12N14P
    • Dimension: φ33mmx20.1mm
    • Shaft Diameter: φ5mm
    • Shaft Protruding Length: 16mm
    • Mounting holes: 19mmx19mm
    • Lead: 260mm/18AWG
    • ESC: 50A-60A
    • Input Volts: 25.2V（6S LiPo)
    • Winding: Single strand copper winding
    • Weight: 69.5g(included wire)
    • Suitable for: 7-8 inch long-range FPV

    Includes

    • 1 x EM2810 motor
    • 4 x M3*9 round head screws
    • 1 x M5 anti-slip nut
