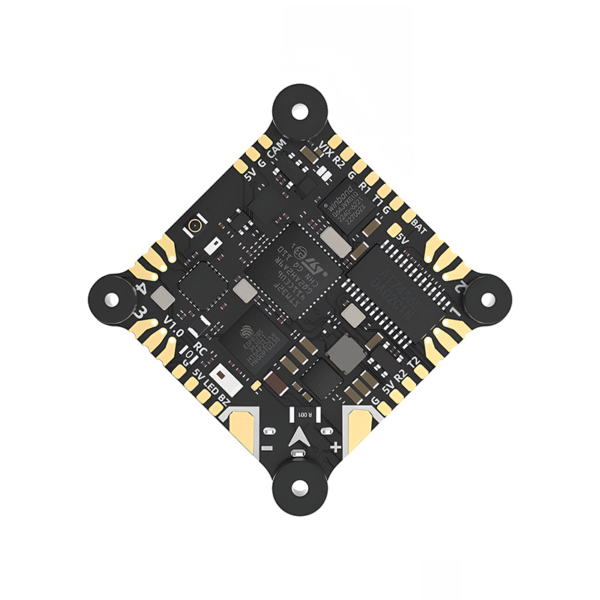

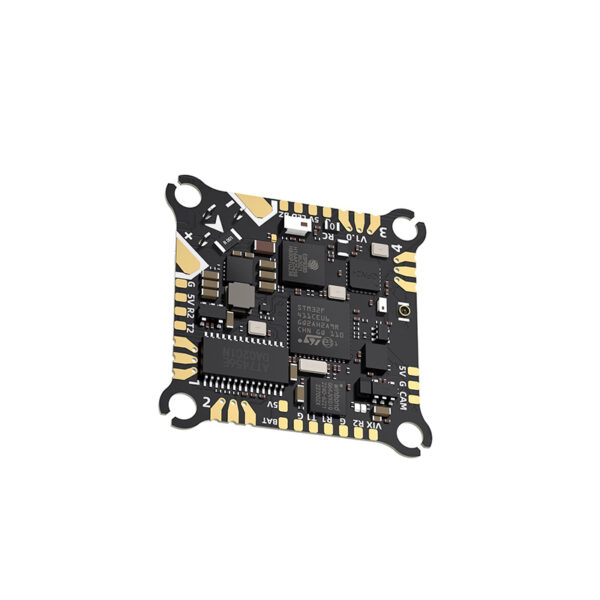

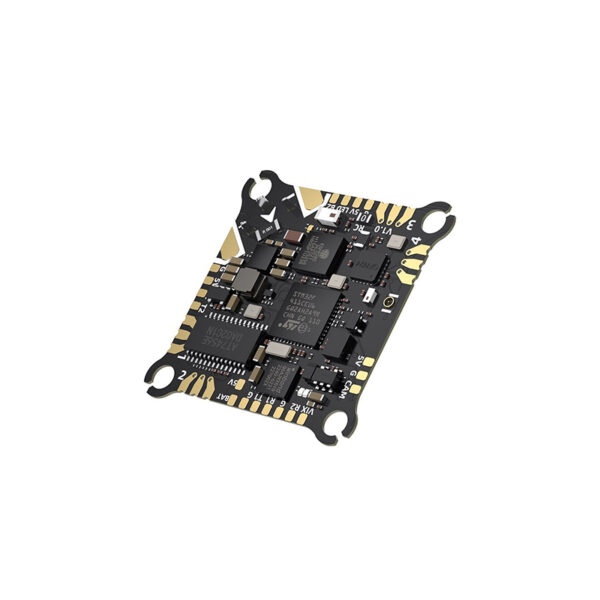

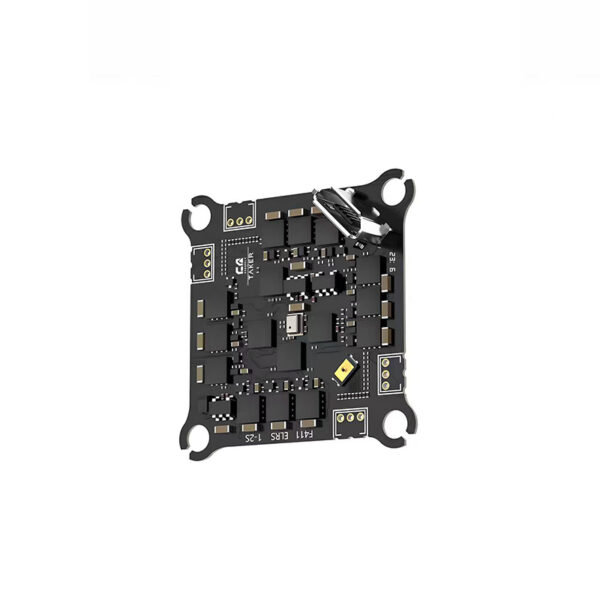

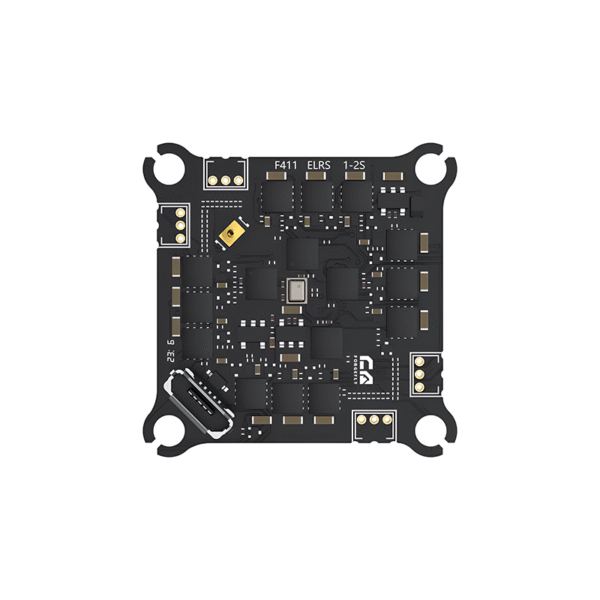

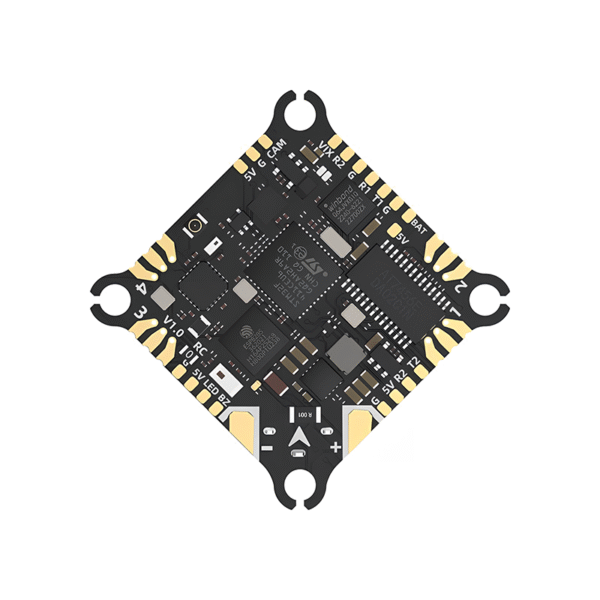

LJIEE TAKER F411-12A-E 1~2S AIO

LJIEE TAKER F411-12A-E 1~2S AIO is a lightweight (4.2g) integrated flight control system for 1.2-2-inch Whoop or 3-inch toothpick models. It features STM32F411 MCU, BMI270 gyro, 12A ESC (13A burst), 1-2S support, integrated ELRS2.4G 3.0 receiver, and 8MB blackbox. Includes the AIO unit and a cable set.

Summary

LJIEE TAKER F411-12A-E 1~2S AIO is a lightweight, highly integrated flight control system weighing only 4.2g, suitable for 1.2-2-inch Whoop models or 3-inch toothpick models. Its 12A ESC offers sufficient overcurrent redundancy for small models, and it integrates an ELRS2.4G 3.0 receiver for space-saving installation. Equipped with the F411 main control and BMI270 gyroscope, it delivers a silky, stable flight feel.

Features

Highly integrated and lightweight flight system.
Supports 1-2S power supply, with higher battery compatibility.
Adopts STM32F411 main control and BMI270 gyroscope, ensuring a silky and stable flight feel.
Motor wiring reserved for welding or SH1.
Integrated ELRS2.4G 3.0 receiver.

Specifications

Item	Details
Model	LJIEE TAKER F411-12A-E 1~2S AIO
MCU	STM32F411
IMU	ICM 42688-P
Firmware Target	TAKERF411 (flight control); C-X-30 (ESC)
OSD	Betaflight OSD w/ AT7456Ev
UART	T1 R1 / T2 R2
SBUS	R2
Receiver	ELRS2.4G 3.0
Buzzer	Support
LED	Support
USB	Micro USB
ESC MCU	EFM8BB21F16G
Continuous Current	12A
Burst Current	13A
Input Voltage	LiPo/LiHv 1S-2S
Support Protocol	Dshot300/600, Oneshot, Multishot
Blackbox	8MB
Galvanometer	Support

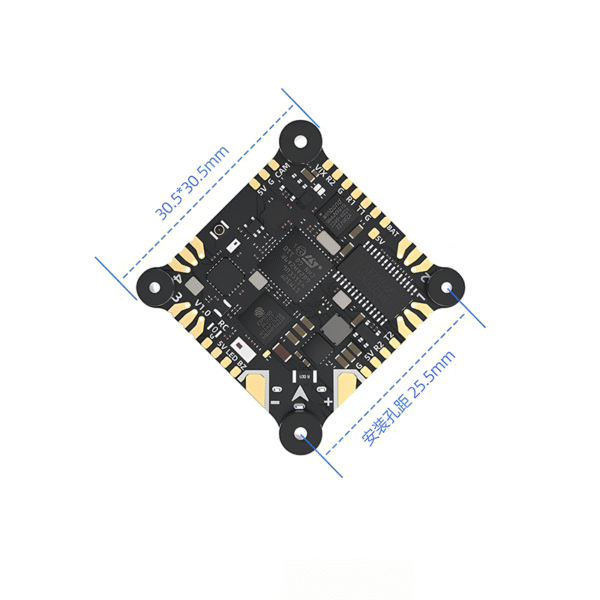

Size	30.5mm × 30.5mm
Fixing Hole Size	25.5mm × 25.5mm（M2）
Weight	4.2g
