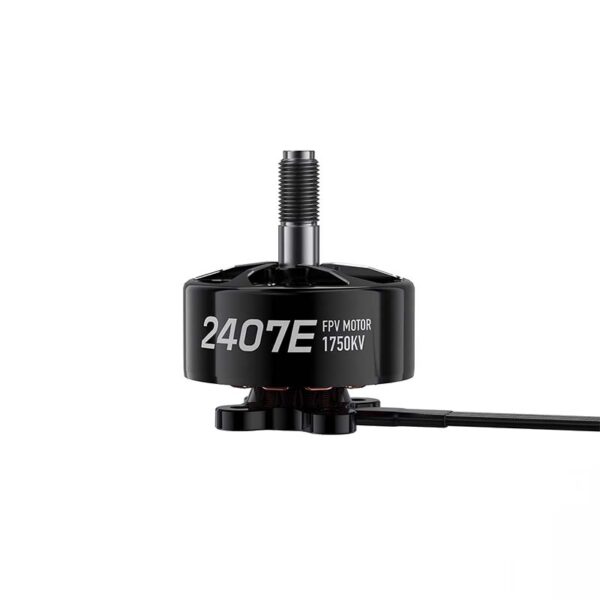

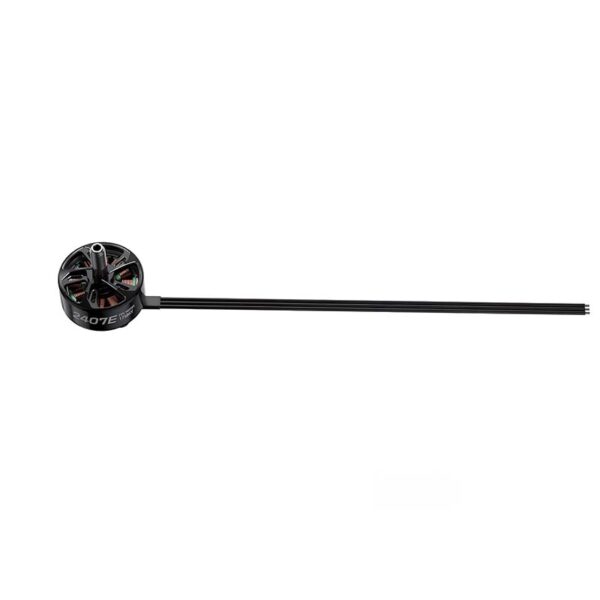

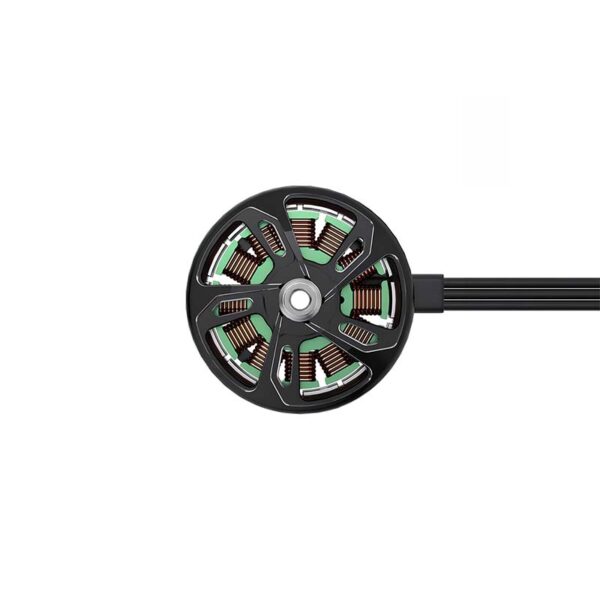

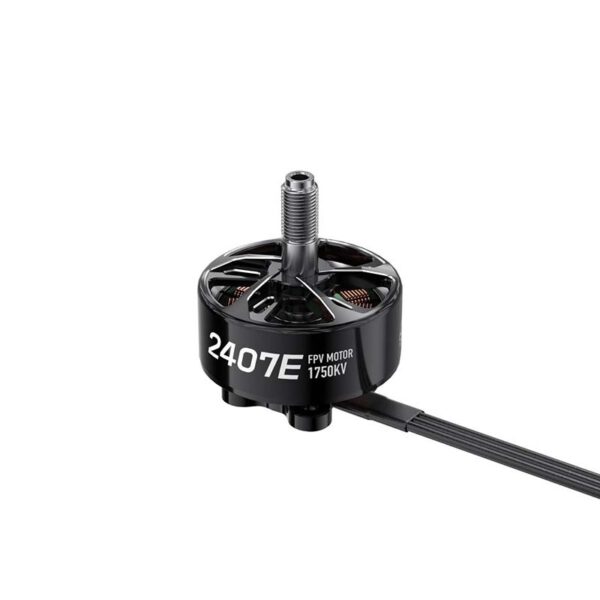

LJIEE SPEEDX2 2407E 1750KV FPV Drone Motor

The SPEEDX2 2407E motor (1750KV) is designed for quick responsiveness in advanced flights, with an all-black, heat-dissipating cutout design and 7075 aerospace-grade aluminum construction. It delivers 972.7W max watt, 49A peak current, works with 60A/6S ESC and 5-6inch propellers, weighing 39g, suitable for 5-6inch racing FPV quads.

Summary

The SPEEDX2 2407E motor is tailored for quick responsiveness in advanced flight applications, featuring an optimized rotor and stator gap. Its all-black design and extensive cut-out structure enhance heat dissipation. Constructed from aviation-grade aluminum alloy using precision CNC molding, this motor is lightweight and durable.

Feature

  • Reduced rotor-stator gap ensures rapid response for seamless freestyle flying.
  • The fresh all-black glossy design with extensive cutouts enhances heat dissipation for better performance.
  • Crafted from 7075 aerospace-grade aluminum with precision CNC machining for a lightweight design.

Specifications

  • Model: SPEEDX2 2407E Motor
  • KV: 1750
  • Max Watt: 972.7W
  • Peak Current: 49A
  • Interphase Resistance: 38mΩ
  • Propeller: 5-6inch
  • Magnet: N52H
  • Bearing: NMB/NSK
  • Stator Configuration: 12N14P
  • Dimension: ф34*30mm
  • Shaft Diameter:ф5mm
  • Shaft Length:13.5mm
  • Mounting Hole Size:16*16mm
  • Wire Specification: 20AWG/150mm
  • Compatible ESC: 60A/6S
  • Input Voltage:6S
  • Winding: Single-strand copper winding
  • Color: Black
  • Weight: 39g (including wire)
  • Compatible Models: Suitable for 5inch-6inch racing FPV quads
