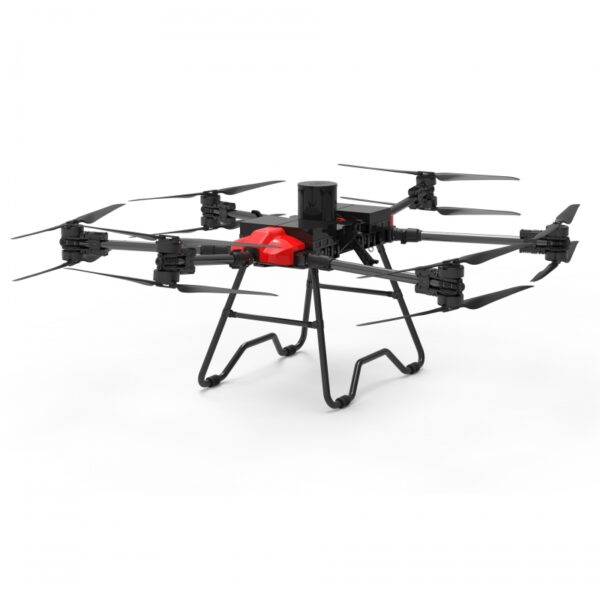

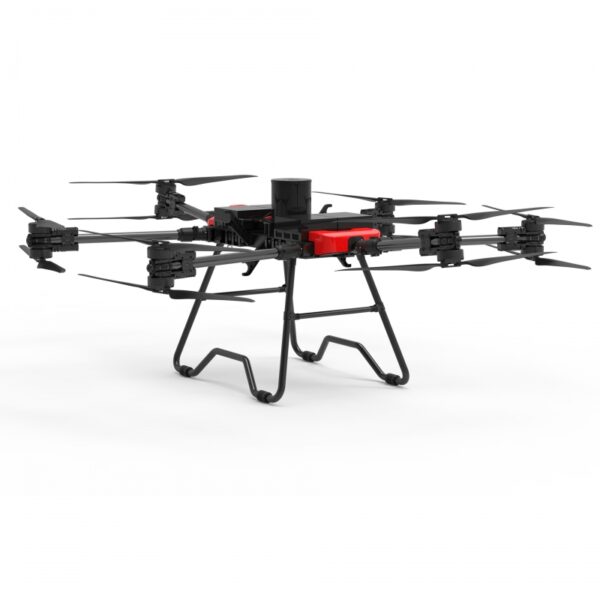

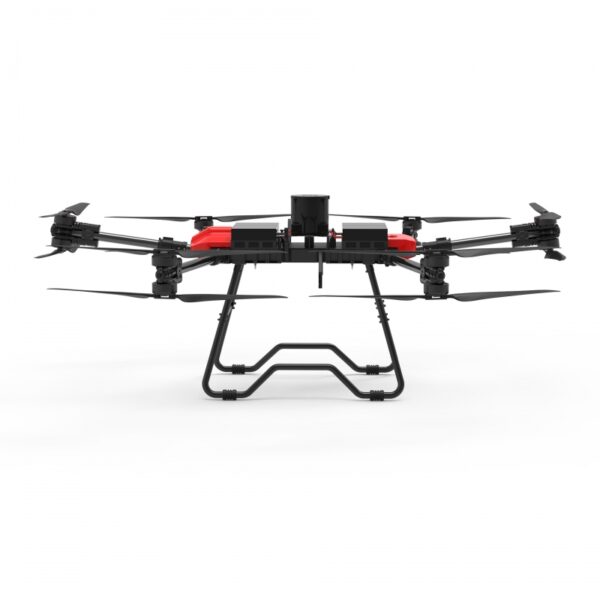

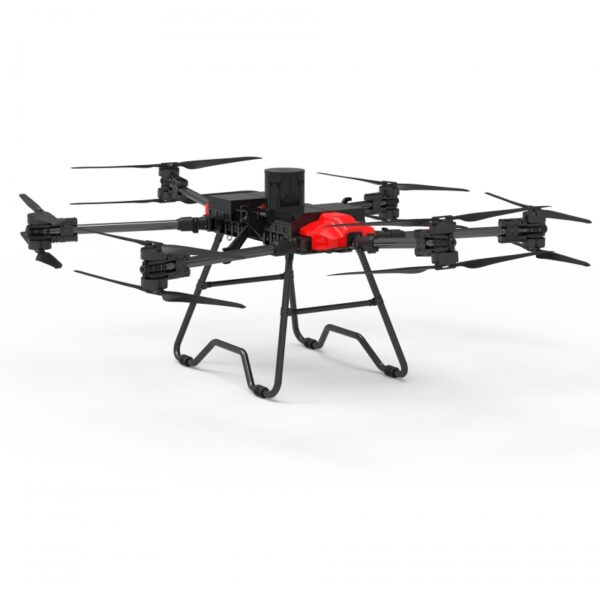

YS-F100B 100kg Transport Drone

The YS-F100B industrial application drone has a wheelbase of 2565 mm and a smaller size when folded. The rack weighs 22 kg, with a maximum load capacity of 80-100 kg. It is powered by four batteries, offering a flight time of over 60 minutes when unloaded and approximately 20-25 minutes with a full load of 100 kg. It is compatible with specific flight platforms and supports multiple remote controls.

Basic Parameters

Product wheelbase: 2565mm
Product size:
- Unfolded: 2795 * 2359 * 982mm

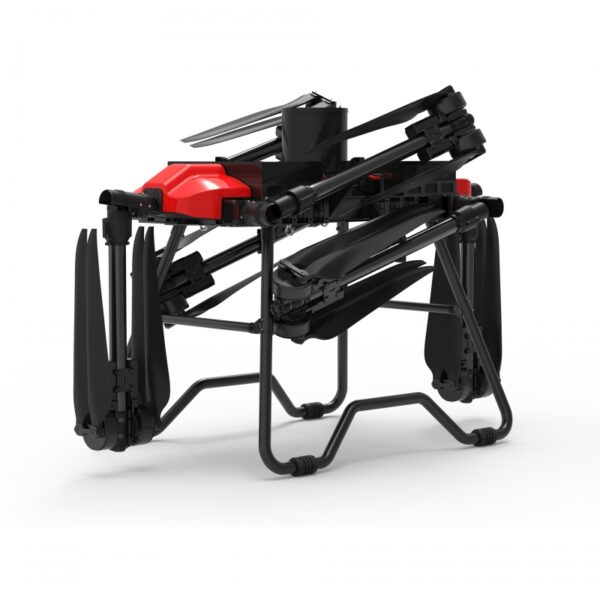

- Folded: 1747 * 853 * 1132mm
Product weight:
- Rack weight: 22kg
- Maximum configuration (battery not included): 66.8kg
- Including weight of four batteries: ≈ 106.8kg
- 100kg full load (takeoff weight): ≈ 206.8kg
Arm size: 46 * 50mm

Load & Fixing

Load capacity: 80~100kg
Battery fixing method: Quick installation of four battery compartments

Compatibility & Control

Compatible model: YS-F100B four electric version industry application flight platform
Flight Control: Bo Ying/Microgram
Remote control: H16/H30/MK32
