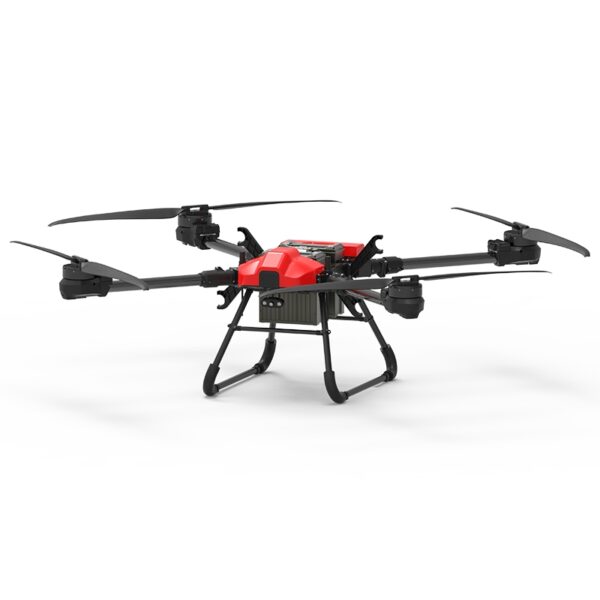

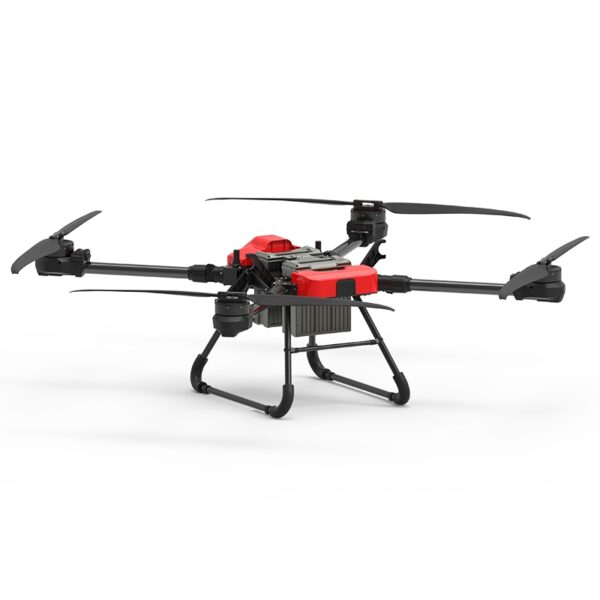

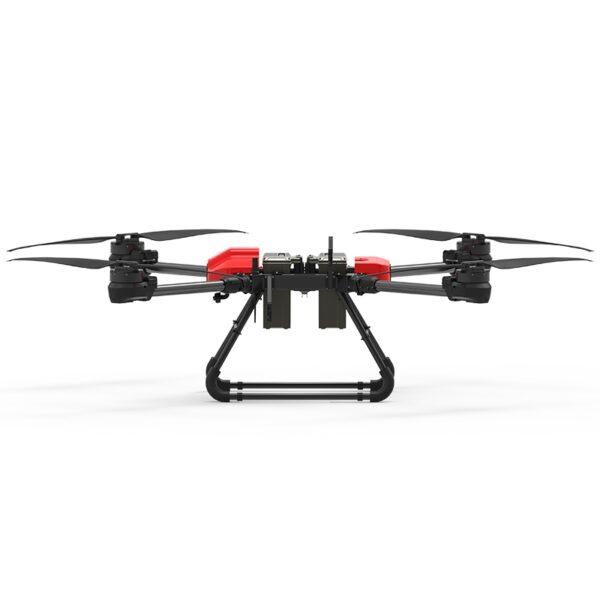

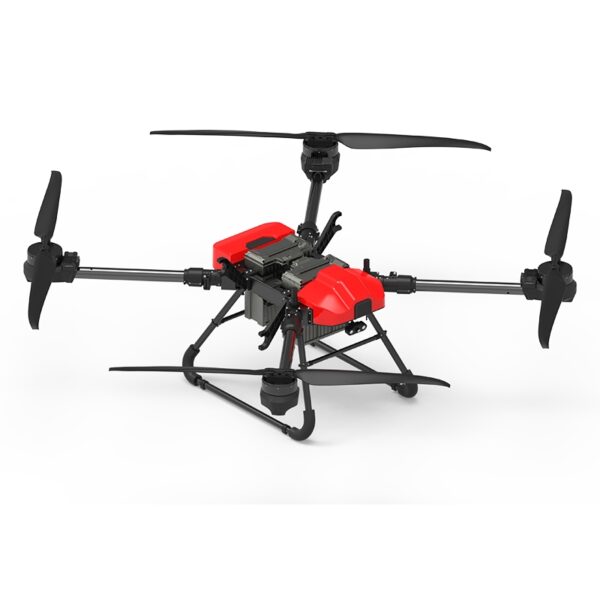

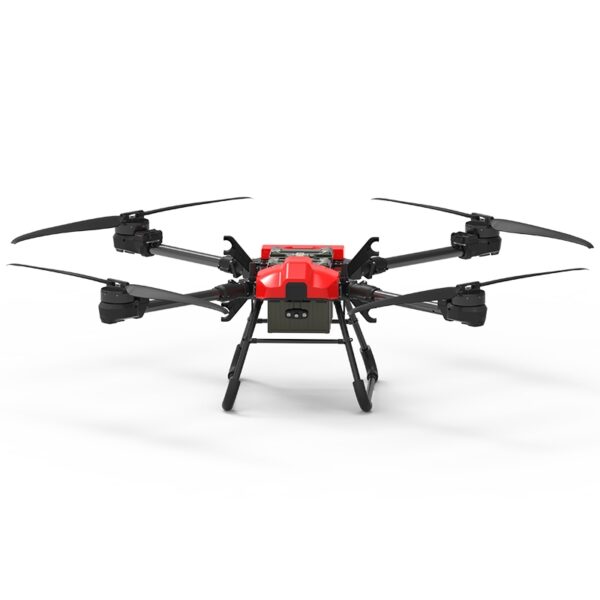

YS-50 Industry Application Transportation Drone

YS-50 is a dual-electric industrial heavy-load transport flight platform with a 2150 mm wheelbase, 50 kg load capacity, X13 power system, 18S batteries, and 15-60 minutes working time depending on load and battery type.

Basic Parameters of the Rack:

Product type: Dual electric version industry application transportation heavy load flight platform
Product wheelbase: 2150mm
Product size:
- 1670 * 1670 * 670 mm (unfolded)
- 954 * 925 * 845 mm (folded)
Product weight:
- 14kg (rack weight)
- 32kg (maximum configuration, excluding battery and pendulum device)
- 33.5kg (including pendulum)
- 57.9kg (including 18S 30000mAh intelligent dual battery weight)
- 107.9kg (full load 50kg, takeoff weight)
- 54.5kg (including 18S 44000mAh soft pack dual battery weight)
- 105.9kg (full load 50kg, takeoff weight)
Arm size: 46 * 50mm
Load capacity: 50kg
Fixed method: plug-in dual electric version
Adapted model: YS-50 dual electric version industry application flight platform
Flight control: KX
Remote control: H16
Power system:
- X13 (motor)
- 200A (electrical regulation)
- 56 inches (propeller)
Battery: 18S 30000mAh * 2 / 18S44000mAh soft pack battery
Working time:
- 60 minutes (unloaded, takeoff weight 54.6kg with 18S44000mAh)
- 20-25 minutes (full load 50kg, 105.5kg with 18S 44000mAh)
- 50 minutes (empty, takeoff weight 57.9kg with 18S 30000mAh)
- 15-20 minutes (full load 50kg, 107.9kg with 18S 44000mAh)
