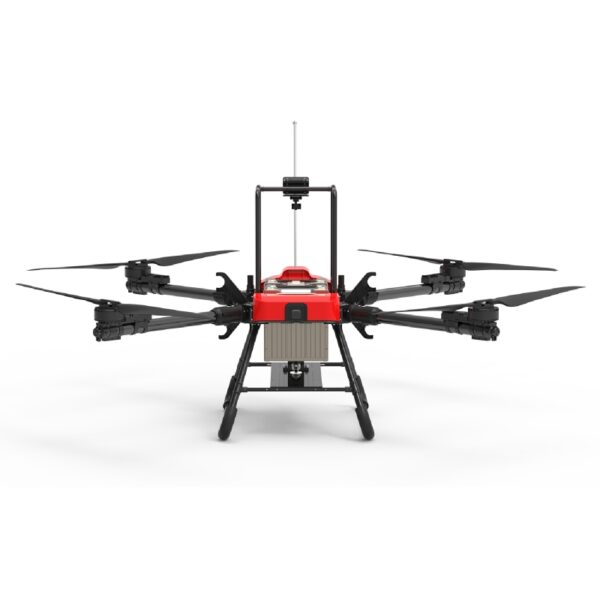

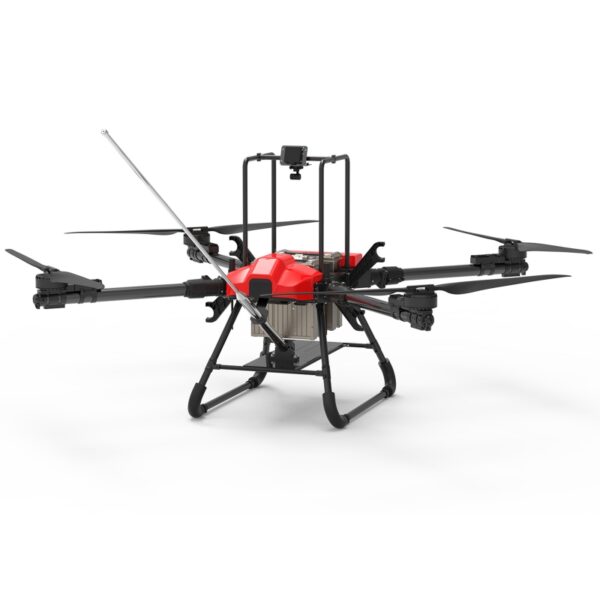

YC-30 High Altitude Cleaning Drone

YC-30 is a high-altitude cleaning drone with a 2050 mm wheelbase, 20-40 kg load capacity, 45-minute unloaded and 15-25-minute full-load working time, using X11 Max power system and 18S 30000 mAh*2 batteries.

Basic Parameters of the Rack:

Product type: Application of high-altitude cleaning drone industry in transportation of heavy-duty flight platforms
Product wheelbase: 2050mm
Product size:
- 1570 * 1570 * 670mm (unfolded)
- 845 * 860 * 805mm (folded)
Product weight:
- 12kg (rack weight)
- 24.5kg (maximum configuration, without battery)
- 91.9kg (full load, takeoff weight)
Arm size: 47 * 50mm
Load capacity: 20-40kg
Fixed method: plug-in high-altitude cleaning drone
Adapted model: YS-40 industry application flight platform
Flight control: KX
Remote control: H12/H16
Power system:
- X11 Max (motor)
- 150A (electrically adjustable)
- 48 inches (propeller)
Battery: 18S 30000mAh * 2
Working time:
- 45 minutes (unloaded, takeoff weight 51.9kg)
- 15-25 minutes (full load 20-40kg)
