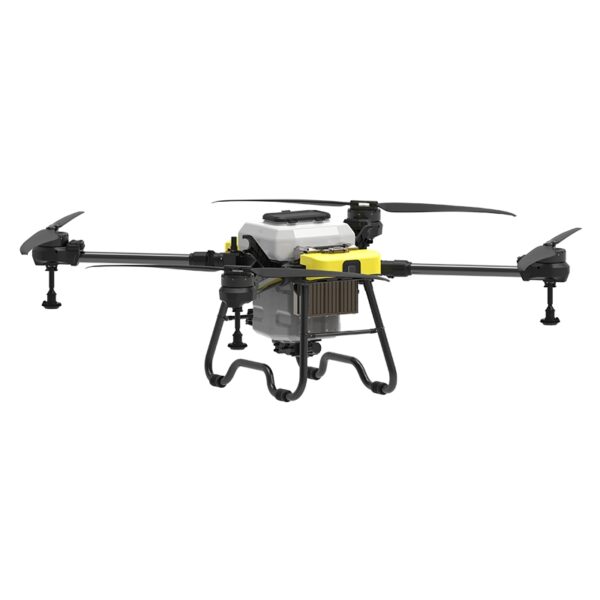

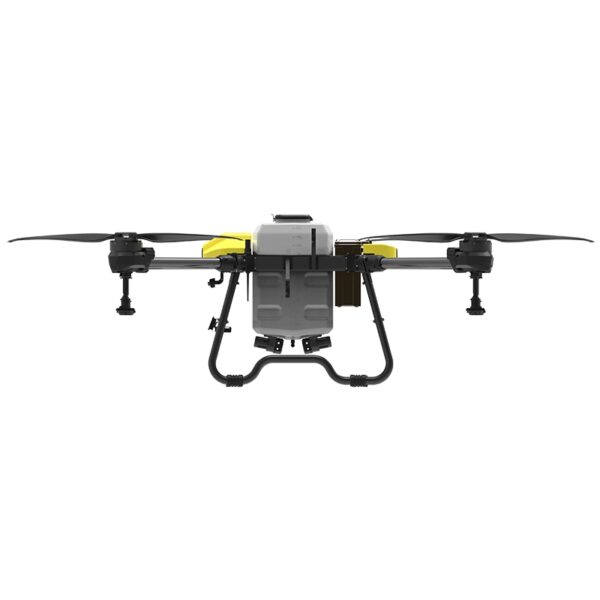

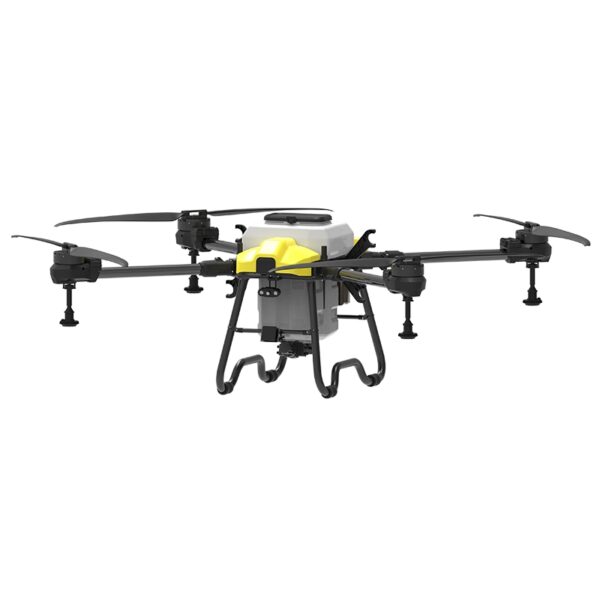

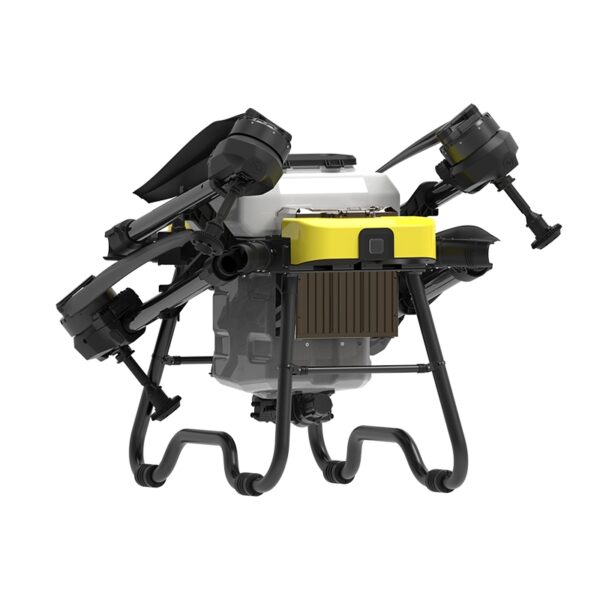

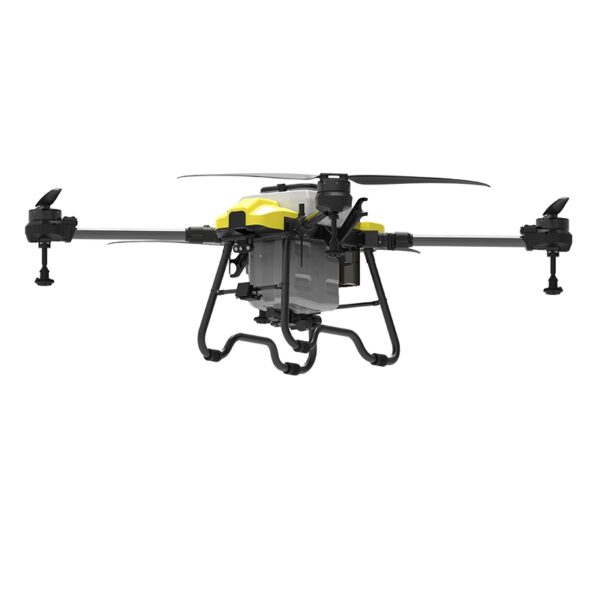

X4-50 Agriculture Drone

X4-50 agriculture drone is a product with specific wheelbase, size, weight and other parameters, featuring a 50L medicine box volume, 8 – 12 meters spray width, 150 acres per hour operation efficiency, equipped with corresponding flight control, remote control, power and spraying systems, using an 18S 30000mAh battery and having specific hover times.

Product Parameters

Product wheelbase: 2280 mm
Product size:
- 1783×1783×790 mm (expanded)
- 950×912×918 mm (folded)
Product weight:
- 2.25kg (50L water tank weight)
- 14.5kg (rack weight)
- 32.9kg (highest configuration, excluding battery)
- 46.6kg (including battery weight)
- 96.6kg (full load, takeoff weight)
Arm size: 46*50mm
Medicine box volume: 50L
Spray width: 8~12 meters
Operation efficiency: 150 acres/hour
Flight control: K++V2/V9 AG/ PALADIN
Remote control: H12/T12
Power system: X13 (motor)
Spraying system:
- Peristaltic water pump
- Pressure sprinkler/centrifugal sprinkler kit
Battery: 18S 30000mAh
Hover time:
- 18 minutes (no-load hover, 18S 30000mAh)
- 8 minutes (full load hover, 18S 30000mAh)
