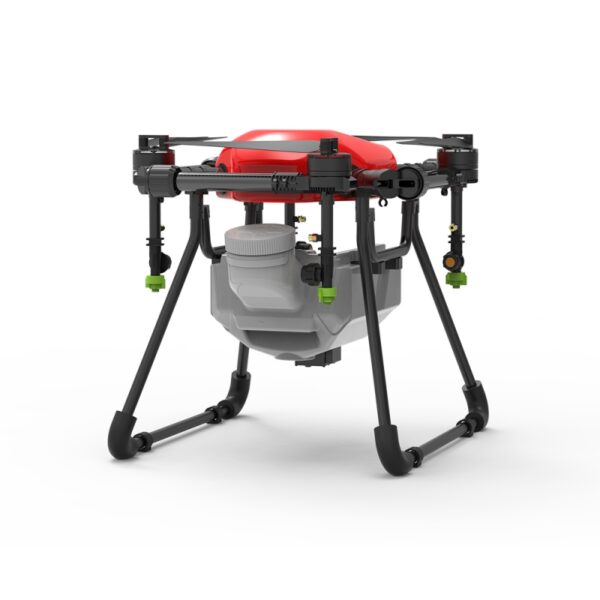

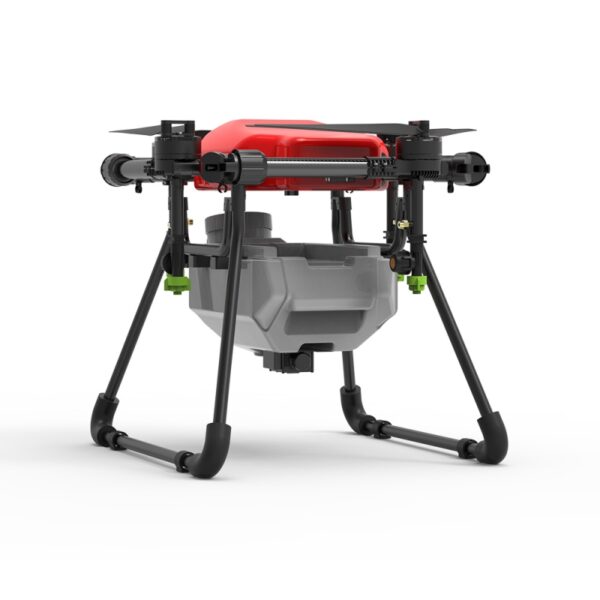

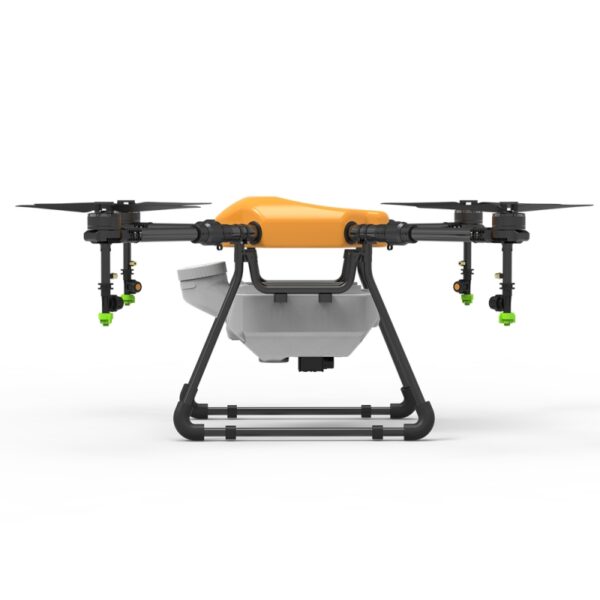

X4-5 5KG Agricultural Drone

The X4-5 is a suspended agricultural plant protection machine structure with a 5kg suspension frame, featuring parameters like 8kg max config weight (no battery), specific unfold/fold sizes, 1200mm wheelbase, carbon – fiber composite arms, 5L medicine box, varying hover times, 2 – 4m spray width, optional flight control, X6 plus power system, and 12S 16000mAh optional battery.

Basic parameters:

Product Name: X4-5
Product type: Suspended plant protection machine structure
Product weight: 8kg (maximum configuration, without battery)
Unfolded size: 935 * 935 * 535mm
Folding size: 575 * 528 * 535mm
Product wheelbase: 1200mm
Arm size: 30mm outer arm to 38mm inner arm, made of carbon fiber composite material
Medicine box volume: fully loaded with 5L (working load, fully loaded with 5KG)
Hover time:
- Empty hover for 30 minutes (@ 16000mAh&takeoff weight 12.8kg)
- Spray full load hover for 12 minutes (@ 16000mAh&takeoff weight 17.8kg)
Homework spray width: 2 – 4 meters (about 1.5 – 3M from crop height)
Recommended configuration: Flight control (optional)
Power system: X6 plus
Battery: 12S 16000mAh (optional)
