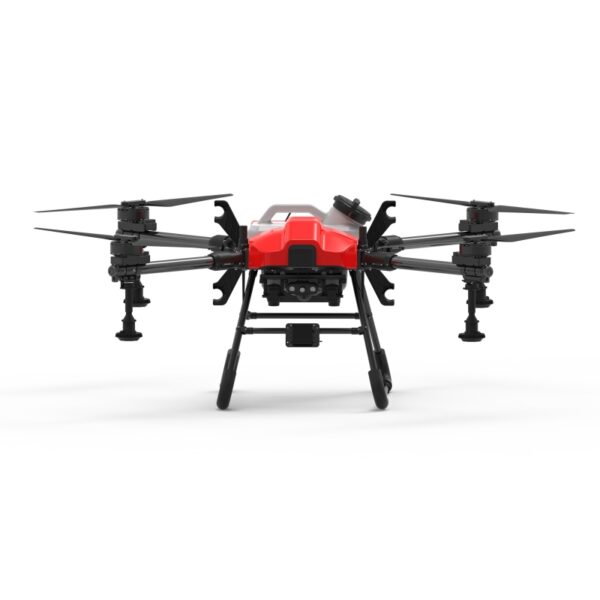

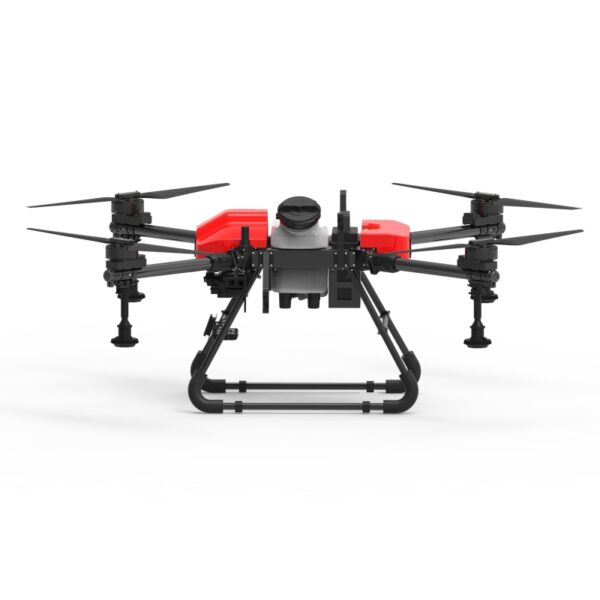

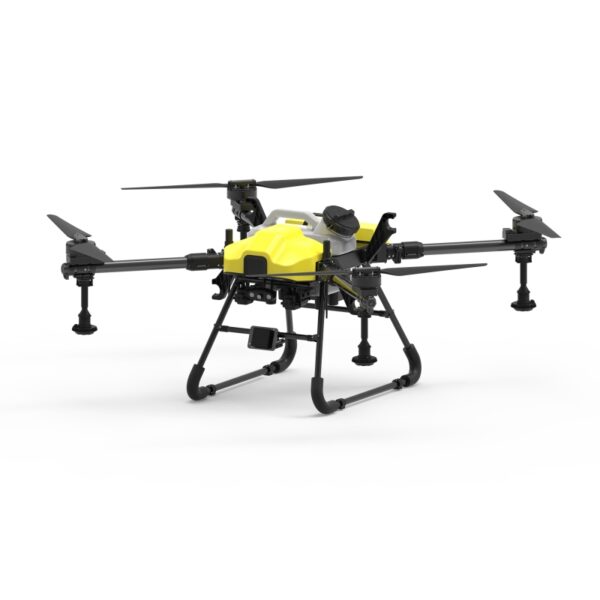

X4-10ZS 10 kg Plug-in Agricultural Drone

The X4-10ZS is a plug-in plant protection machine with 10L medicine box, 25L homework box, 5-8m spraying range, and compatible with X9/X9 plus power system and 12S batteries.

Categories: Agriculture Drone, Drones Tags: Agricultural Drone, Drone

Inquire Now

Description
Reviews (0)

Basic Parameters of 10kg Plug-in Rack:

Product Name: X4-10ZS
Product Type: Structure of plug-in plant protection machine
Product Weight:
- 15kg (maximum configuration, including battery)
- 7kg (rack with medicine box)
Unfolded Size: 1252 * 1252 * 674mm
Folding Size: 730 * 790 * 750mm
Product Wheelbase: 1605mm
Arm Size: 37 * 40mm carbon fiber tube
Medicine Box Volume: Fully loaded with 10L (working load, fully loaded with 10KG)
Boxa Homework Box Capacity: 25L (maximum internal load capacity, 25KG)
Hover Time:
- No-load hover for 25 minutes (@ 28000mAh & takeoff weight 15kg)
- Spray full-load hover for 12 minutes (@ 28000mAh & takeoff weight 25kg)
- Broadcast full-load hover for 11 minutes (@ 28000mAh & takeoff weight 35kg)
Homework Spraying Range: 5-8 meters (about 1.5-3M from crop height)
Recommended Configuration: Flight control (optional)
Power System: X9/X9 plus
Battery: 12S 22000-28000mAh (optional)
