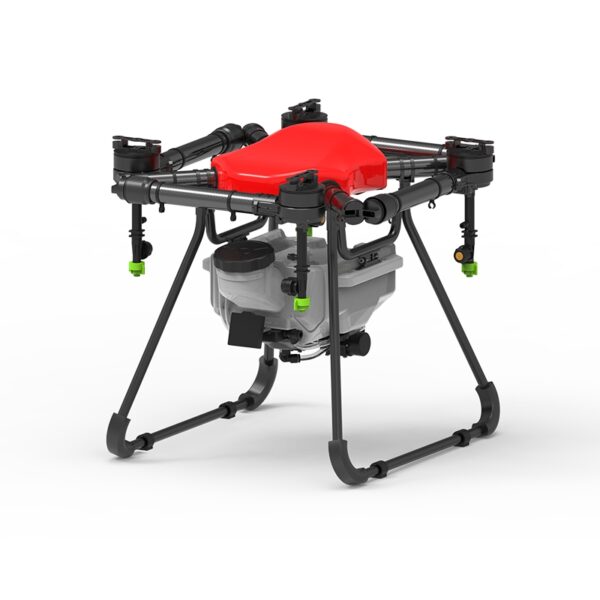

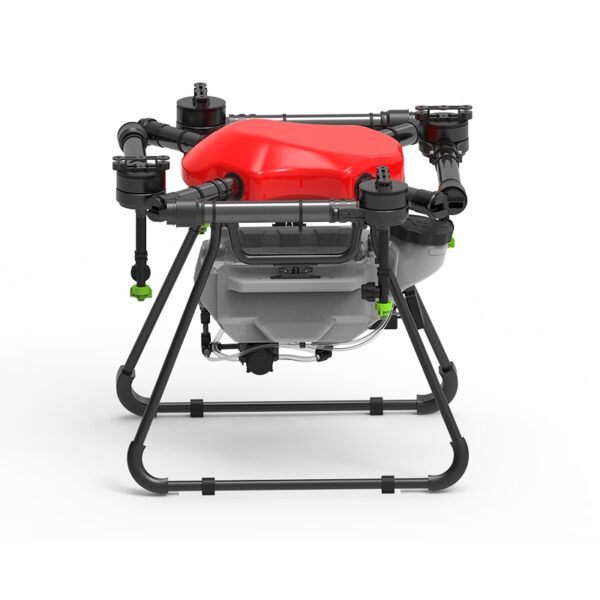

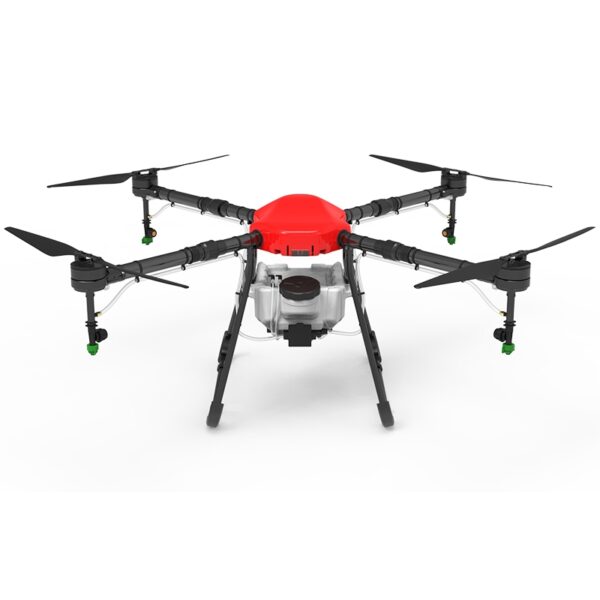

X4-10S 10KG Agricultural Drone UAV

X4-10s agricultural plant protection UAV – suspended – professional structure matching

New agricultural UAV – efficient operation – fast travel, stability and efficiency.

X4 series classic stable agricultural drone.

X4-10S stable version of plant protection UAV, adopts encircling four-rotor folding,

equipped with suspended water tank battery, the center of the fuselage is connected and

fixed, which can effectively improve the overall frame strength, dustproof and waterproof,

using a 30-inch power system is strong and powerful, the whole body Lightweight design,

easy to control, multi-mode flying control plant protection operation. Maximum payload

volume 10L.

Product Name: X4-10s
Product type: Suspended plant protection UAV
Product wheelbase: 1216mm
Product size:
- 1216×1026×630 mm (expanded)
- 620×620×630 mm (folded)
Product weight:
- 1.12kg (weight of 10L water tank)
- 4.6kg (rack weight)
- 14.5kg (highest configuration, including battery)
- 24.9kg (full load, take-off weight)
Arm size: 37*40mm
Medicine box volume: 10L
Spray width: 3~6 meters
Working efficiency: 60 acres/hour
Flight control: K++V2/V9 AG/ PALADIN
Remote control: H12/T12
Power system:
- X8 100kv (motor)
- 100A (ESC)
- 3090 (Propeller)
Spraying system:
- 5L water pump (voltage: DC44-60.9V)
- Pressure sprinkler
Battery: 12S 16000mAh
Hover time:
- 24 minutes (no-load hover, 12S 22000mAh)
- 10 minutes (full-load hover, 12S 22000mAh)
