LJIEE TAKER G4 45A 8Bit AIO

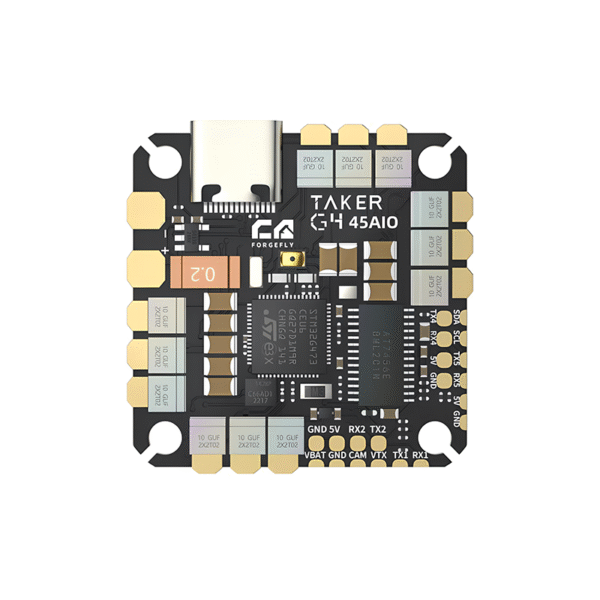

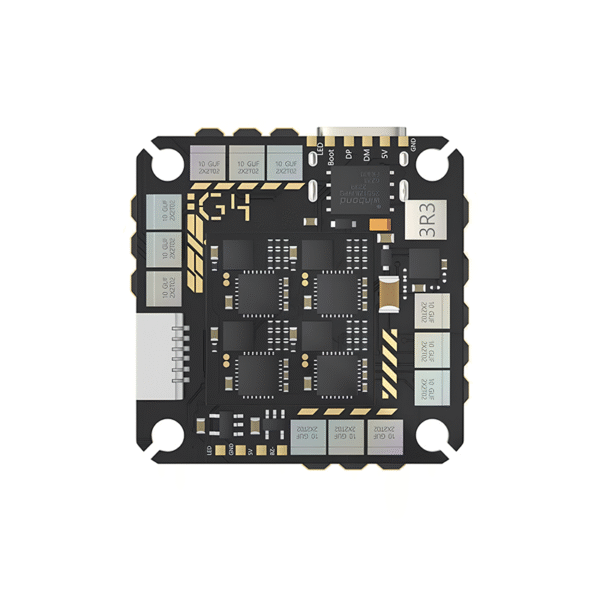

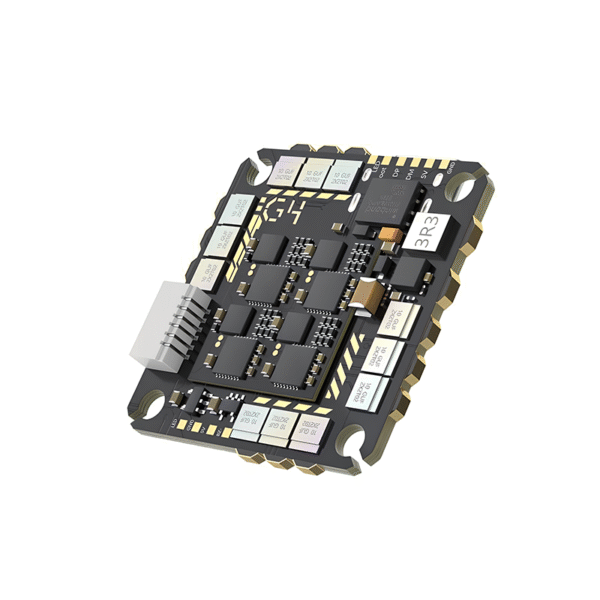

The LJIEE TAKER G4 45A 8Bit AIO is an integrated device featuring the STM32G473CEU6 MCU, ICM 42688-P IMU, Betaflight OSD, Type-c USB, 5V 3A BEC output, QF32MT ESC MCU, 45A continuous current (50A burst for 5″), 2~6S LiPo input, support for Dshot600/Oneshot/Multishot, a current meter, buzzer, LED, 25.5×25.5mm install holes, 33.8×34.1mm size, 9g weight, and includes a cable set; with the G473 controller offering 170MHz frequency and strong computing capability, its integrated design saves space and ensures reliable performance.

Summary

The TAKER G4 45A 8Bit AIO, developed by the LJIEE team, features the advanced G473 flight controller for enhanced computing capability. Its robust overcurrent protection and compact design, powered by the QF32MT chip and integrated ESU and MCU, ensure superior performance. We are confident that TAKER G4 45A 8Bit AIO will deliver exceptional enjoyment.

Features

Weighs only 9 grams.
The G473 control possesses 170MHZ operating frequency and outstanding computing capability.
The optimized Type-c USB has better versatility.
The integrated ESU and MCU motivate FET directly, which is lightweight and space-saving.
