LJIEE TAKER G4 45A 8Bit AIO

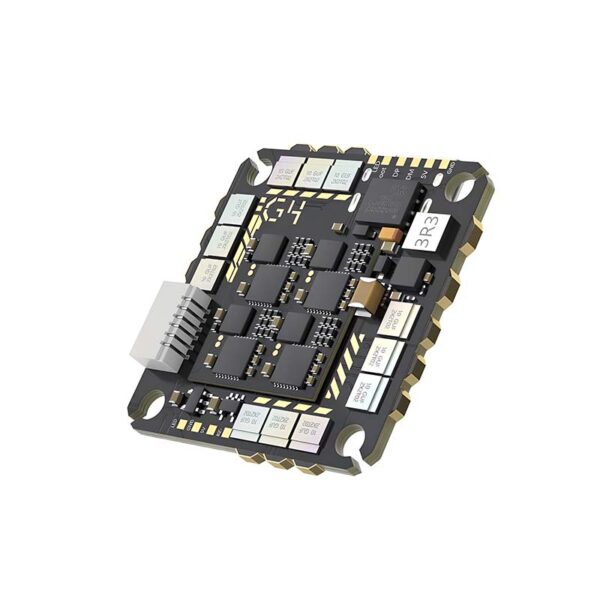

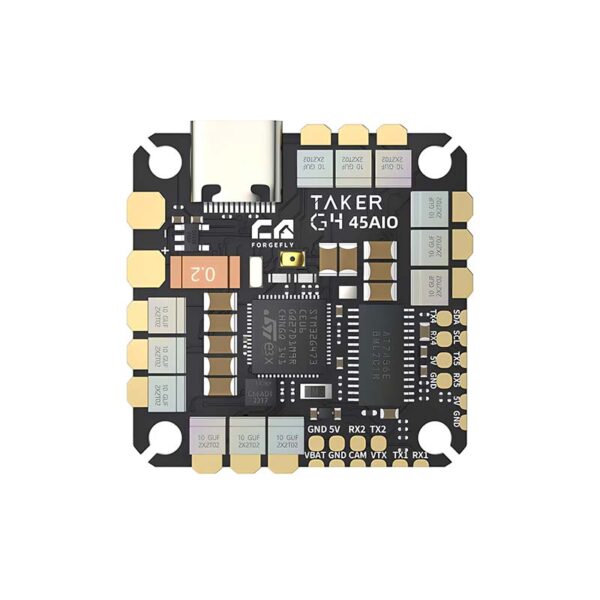

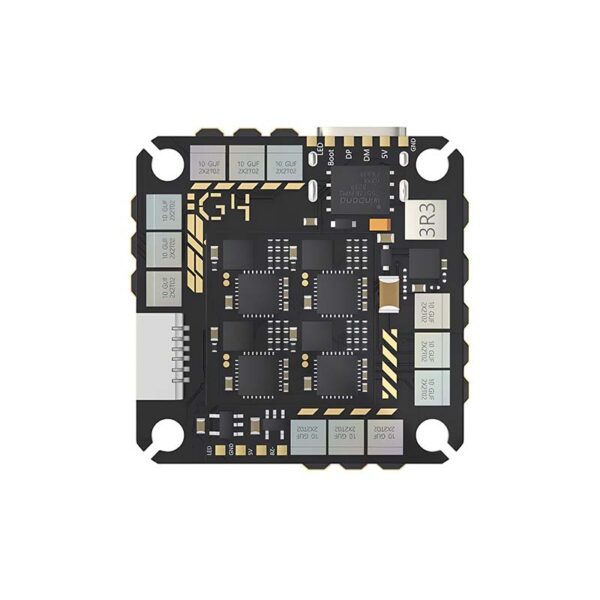

# The TAKER G4 45A 8Bit AIO, by LJIEE, features the G473 flight controller (STM32G473CEU6 MCU) with 170MHz frequency for strong computing. It has robust overcurrent protection, a compact design (33.8mm*34.1mm, 9g), and integrates ESU and MCU to save space.

# Key features: optimized Type-C USB, 4 UART ports, Betaflight OSD, buzzer, LED, 5V 3A BEC, and support for Dshot600/Oneshot/Multishot. It handles 2–6S input, 45A continuous current, and 50A burst (5″).

# Included: 1 AIO unit and 1 cable set.

Summary

The TAKER G4 45A 8Bit AIO, developed by the LJIEE team, features the advanced G473 flight controller for enhanced computing capability.

Its robust overcurrent protection and compact design, powered by the QF32MT chip and integrated ESU and MCU, ensure superior performance.

We are confident that TAKER G4 45A 8Bit AIO will deliver exceptional enjoyment.

Feature

Weighs only 9 grams.
The G473 control possesses 170MHZ operating frequency and outstanding computing capability.
The optimized Type-c USB has better versatility.
The integrated ESU and MCU motivate FET directly, which is lightweight and space-saving.

Specifications

Parameter	Details
Model Name	TAKER G4 45A 8Bit AIO
MCU	STM32G473CEU6
IMU	ICM 42688-P
Firmware target	TAKERG4AIO
OSD	Betaflight OSD w/ AT7456Ev
Uart	R1 T1 / R2 T2 / R4 T4 / R5 T5
Buzzer	YES
LED	YES
USB	Type-c USB
BEC output	5V 3A
ESC MCU	QF32MT
Continuous Current	45A
Burst Current	50A(5″)
Input Voltage	2~6S (LIPO Battery)
Supports	Dshot600, Oneshot, Multishot
Current meter	YES
target	F4A AIO
Size	33.8mm * 34.1mm Board
Install hole	25.5 mm * 25.5mm
Weight	9g
