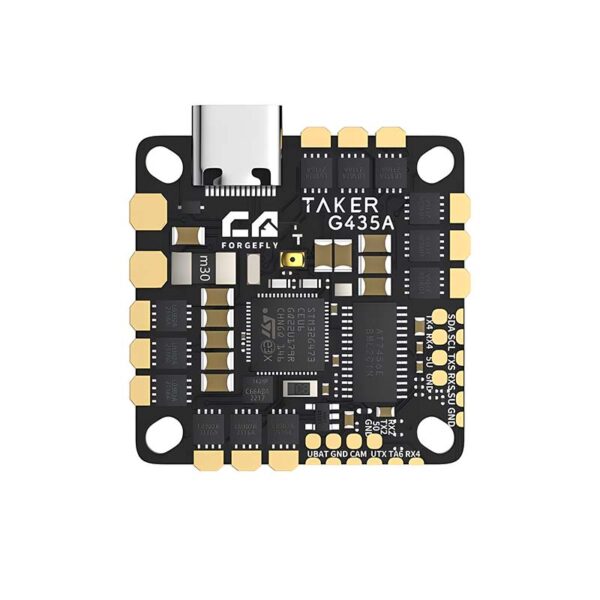

LJIEE TAKER G4 35A AIO

# The TAKER G4 35A AIO, a new flight controller from GEPRC, features the G473 main control (STM32G473CEU6) with 170MHz frequency and ample computing power. It has an upgraded Type-C USB, optimized pads for easier welding, and compatibility with 25.5-26.5mm mounting holes (suiting more frames).

# Key specs: 7.7g weight, 33.4×34.4mm size, 35A continuous current, 45A burst (5″), 2~4S input, support for Dshot600/Oneshot/Multishot, plus OSD, buzzer, LED, and 5V@3A BEC.

# Included: 1 AIO unit and 1 cable set.

Summary

TAKER G4 35A is a newly developed AIO flight control by the LJIEE team. It adopts G473 main control and has more redundant computing power.

In response to market demand, the TYPE-C interface has been upgraded, and the power supply pad and motor wire pad have been optimized to make welding easier. It is compatible with two mounting holes of 25.5-26.5mm and can be compatible with more frames.

We are committed to pursuing flight controllers that are smaller in size, lighter in weight and stronger in performance.

Feature

Compact size and compatible mounting holes make installation convenient.
Light weight only 7.7g.
G473 main control, 170MHz operating frequency, abundant computing power.
Upgraded Type-c USB for better versatility.

Specifications

Parameter	Details
Model Name	TAKER G4 35A AIO
MCU	STM32G473CEU6
IMU	ICM 42688-P
Firmware target	TAKERG4AIO
OSD	Betaflight OSD w/ AT7456Ev
Uart	R1 T1 / R2 T2 / R4 T4 / R5 T5
Buzzer	YES
LED	YES
USB	Type-c USB
BEC output	5V@3A
ESC MCU	BB21F16G
Continuous Current	35A
Burst Current	45A(5″)
Input Voltage	2~4S (LIPO Battery)
Supports	Dshot600, Oneshot, Multishot
Current meter	YES
target	J -H -15
Size	33.4×34.4mm Board
Install hole	25.5-26.5 Φ3.05mm
Weight	7.7g
