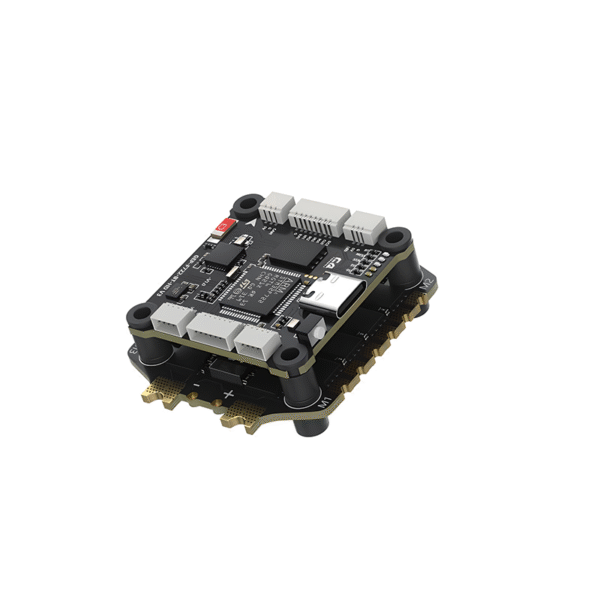

LJIEE TAKER F722 BT 8Bit 60A STACK

# Features: Uses STM32F722 chip, ICM42688-P gyroscope, 512M black box, Bluetooth tuning, Type-C port, integrated LC filter and barometer, dual BEC (9V@2.5A + 5V@3A), compatible with TAKER H60_BLS 60A 4IN1 ESC and DJI Air Unit, easy installation with shock mounts.
# Specs: GEP-F722-BT-HD V3 FC (36.9×36.9mm, 8.2g, 3-6S input, 5 UARTs) and TAKER H60_BLS ESC (60A continuous/65A burst, 42×45.7mm, 14.9g).
# Included: FC, ESC, capacitor, cables (O3 3-in-1, adapter, etc.), screws, nuts, silicone pads.
Categories: , , Tags: , Brand:
Inquire Now

    Features

    • Uses mainstream STM32F722 chip
    • Equipped with the latest ICM42688-P gyroscope
    • 512M black box storage
    • Supports Bluetooth parameter tuning
    • Integrated LC filter
    • Upgraded Type-C USB interface
    • Compatible with TAKER H60_BLS 60A 4IN1 ESC for silky-smooth flight
    • Directly plugs into the DJI Air Unit
    • Simple and effective installation with shock-absorbing mounts (ensures stable gyroscope performance)
    • Integrated barometer
    • 9V@2.5A + 5V@3A dual independent BEC

    Specifications

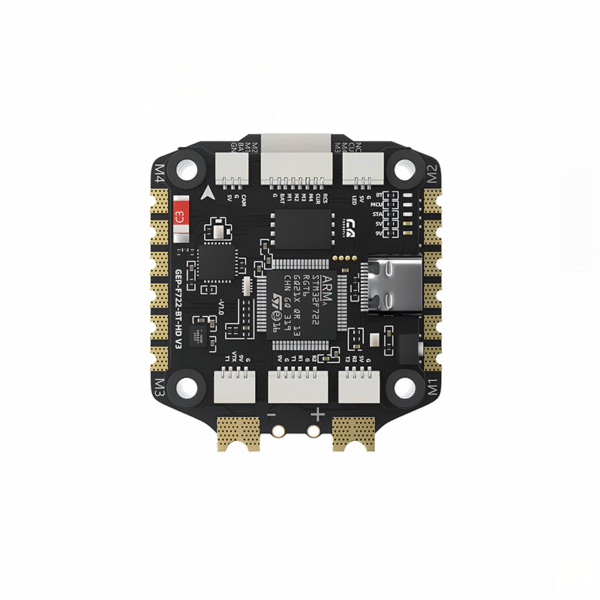

    GEP-F722-BT-HD V3 Flight Controller

    Parameter Details
    MCU STM32F722
    IMU ICM42688-P (SPI)
    Air Unit Connection Directly plugs into the DJI Air Unit
    Black Box 512M onboard
    Bluetooth Supported
    Barometer Supported
    USB Interface Type-C
    OSD BetaFlight OSD with AT7456E chip
    BEC 5V@3A, 9V@2.5A dual BEC
    Firmware Target GEPRCF722_BT_HD_V3
    Size 36.9×36.9mm; Hole pattern: 30.5×30.5mm; φ4mm hole → φ3mm with silicone shock-absorbing ring
    Input Voltage 3-6S LiPo
    UART 5 groups (UART4 fixed for Bluetooth)
    Power Filter Integrated LC filter
    Weight 8.2g

    TAKER H60_BLS 60A 4IN1 ESC

    Parameter Details
    Input Voltage 3-6S LiPo
    Ammeter Supported
    Continuous Current 60A
    Burst Current 65A (for 5 seconds)
    Supported Protocols Dshot 150/300/600
    Size 42×45.7mm; Hole pattern: 30.5×30.5mm; φ4mm hole → φ3mm with silicone shock-absorbing ring
    Weight 14.9g
    Target B_X_30

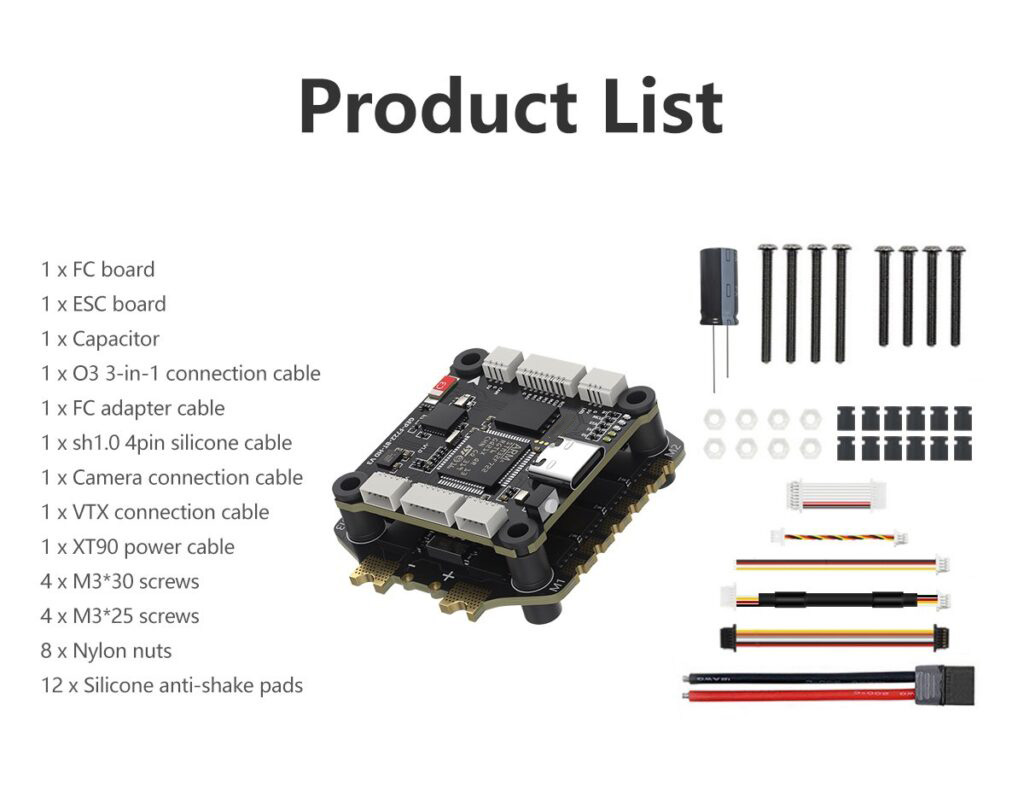

    Package Includes

    • 1 x FC board
    • 1 x ESC board
    • 1 x Capacitor
    • 1 x O3 3-in-1 connection cable
    • 1 x FC adapter cable
    • 1 x SH1.0 4-pin silicone cable
    • 1 x Camera connection cable
    • 1 x VTX connection cable
    • 1 x XT90 power cable
    • 4 x M3×30 screws
    • 4 x M3×25 screws
    • 8 x Nylon nuts
    • 12 x Silicone anti-shake pads
