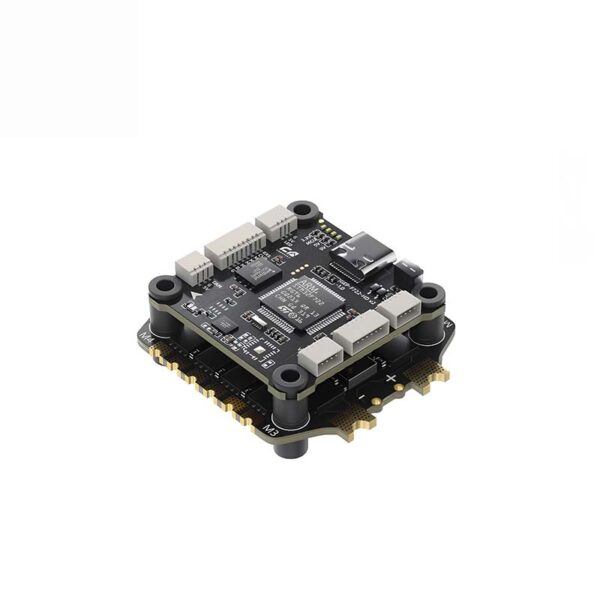

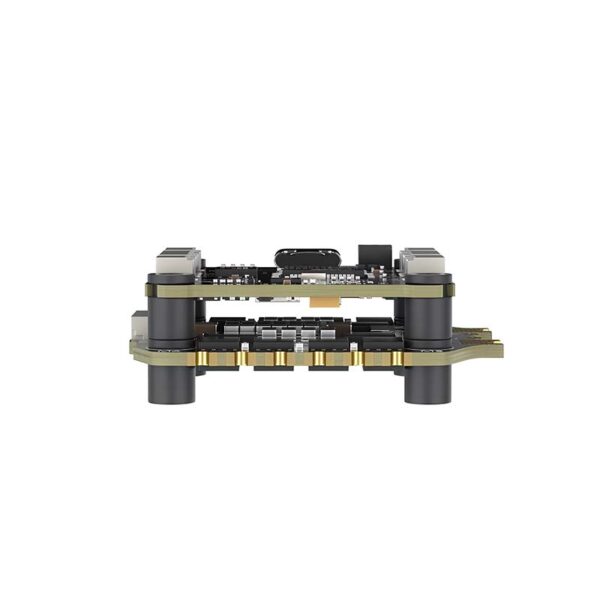

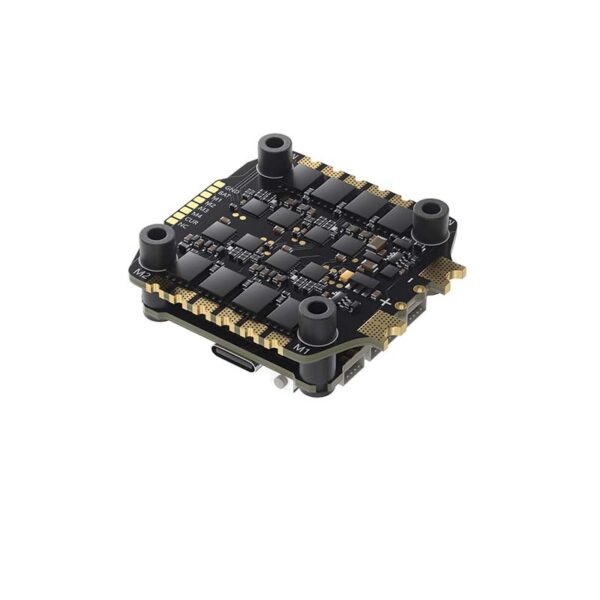

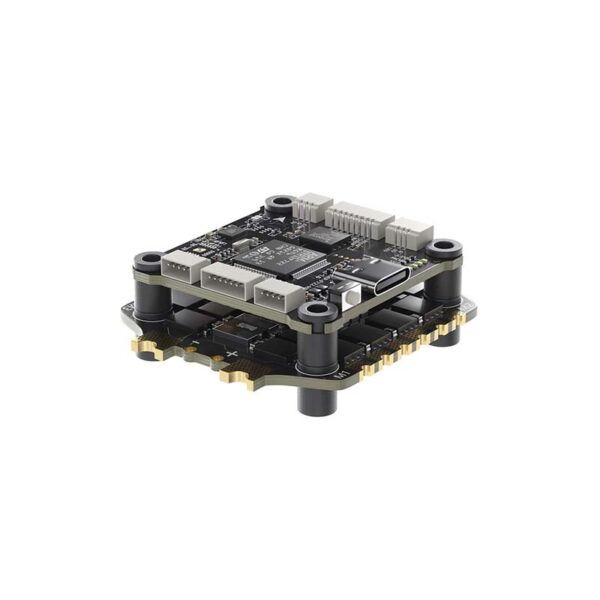

LJIEE TAKER F722 BLS 65A V2 STACK

# Features: Uses STM32F722 chip and 42688-P gyroscope, 16M black box, integrated LC filter, Type-C port, direct DJI Air Unit connection, paired with TAKER H65_8S_BLS 65A ESC for smooth flight. Includes dual BECs (9V@2.5A + 5V@3A) and stable gyro performance via shock absorbers.

# Specs: LJIEE F722-HD v2 FC (36.85×36.85mm, 8.1g, 3-6S input); TAKER H65_8S ESC (65A continuous/70A burst, 42×45.7mm, 14.9g, 3-8S).

# Included: FC, ESC, capacitor, cables (DJI adapter, etc.), XT60 cable, screws, nuts, silicone pads.

Features

Uses the mainstream STM32F722 chip
Equipped with the latest 42688-P gyroscope
16M onboard black box storage
Integrated LC filter
Upgraded Type-C USB interface
Directly plugs into the DJI Air Unit
Paired with the TAKER H65_8S_BLS 65A 4IN1 ESC for a smooth flying experience
Simple and efficient installation with shock absorbers (ensures stable gyroscope performance)
Dual independent BECs: 9V@2.5A and 5V@3A

Specifications

GEP-F722-HD v2 Flight Controller

Parameter	Details
MCU	STM32F722
IMU	ICM42688-P (SPI)
Air Unit Connection	Direct plug-in to DJI Air Unit
Black Box	16M onboard
USB Interface	Type-C
Barometer	Supported
OSD	BetaFlight OSD w/ AT7456E chip
BEC	5V@3A, 9V@2.5A dual BEC
Firmware Target	LJIEE F722
Dimension	36.85×36.85mm; Mounting hole size: 30.5×30.5mm; φ4mm hole → φ3mm with silicone shock-absorbing circle
Input Voltage	3-6S LiPo
UART	5
Power Filter	Integrated LC filter
Weight	8.1g

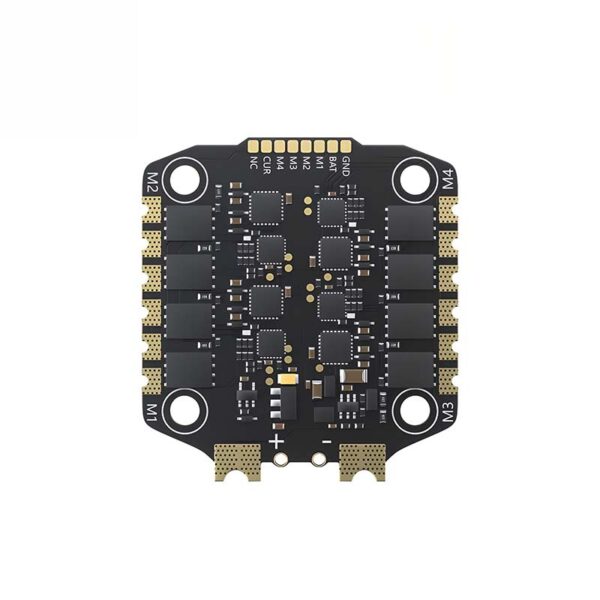

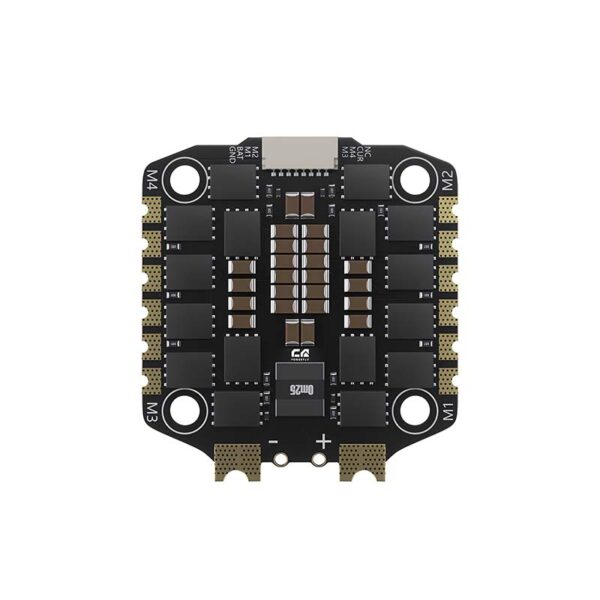

TAKER H65_8S_BLS 65A 4IN1 ESC

Parameter	Details
Input Voltage	3-8S Lipo
Ammeter	Supported
Continuous Current	65A
Burst Current	70A (5 seconds)
Supported Protocol	Dshot 150/300/600
Dimension	42×45.7mm; Mounting hole size: 30.5×30.5mm; φ4mm hole → φ3mm with silicone shock-absorbing ring
Weight	14.9g
Firmware Target	B_X_30
