Use mainstream STM32F722 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the DJI Air Unit

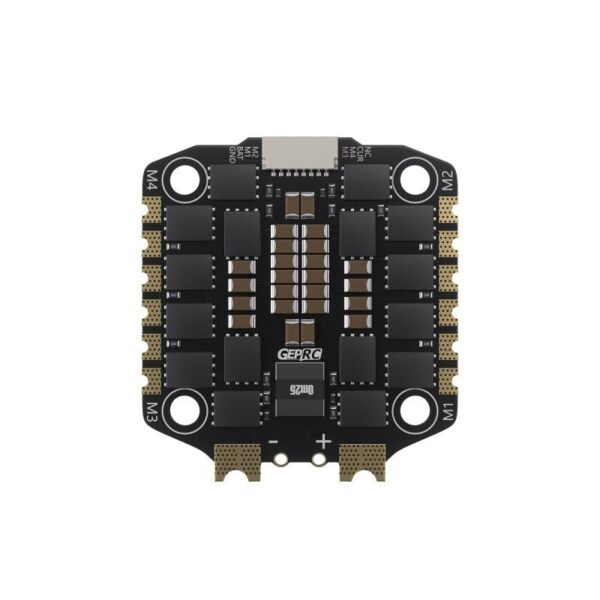

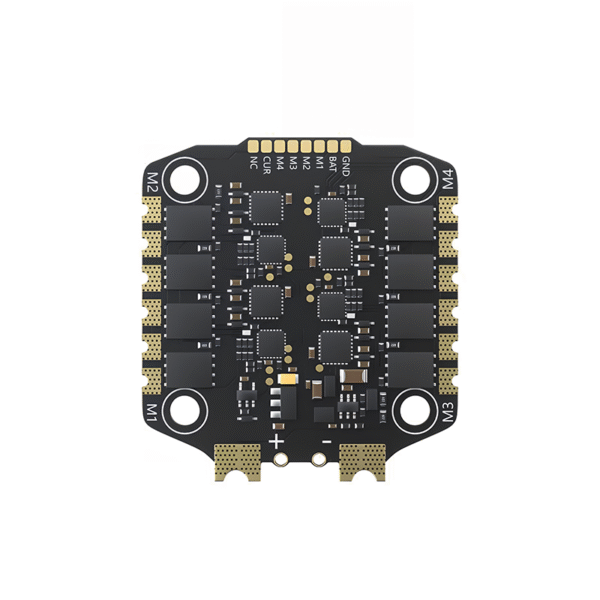

With TAKER H60_BLS 60A 4IN1 ESC, the flying feel is silky
Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9V@2.5A + 5V@3A dual independent BEC

Parameter	Details
MCU	STM32F722
IMU	ICM42688-P (SPI)
Air Unit Connection	Direct plugging into DJI Air Unit
Black Box	16M onboard
USB Interface	Type-C
OSD	BetaFlight OSD w/ AT7456E chip
BEC	5V@3A, 9V@2.5A dual BEC
Firmware Target	LJIEE-F722
Size	36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
Input Voltage	3-6S LiPo
UART	5
Power Filter	Integrated LC filter
Weight	8.1g

Parameter	Details
Input Voltage	3-6S Lipo
Ammeter	Support
Continue Current	60A
Burst Current	65A（5 second）
Support Protocol	Dshot 150/300/600
Size	42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight	14.9g
Target	B_X_30

Reviews

There are no reviews yet.

Be the first to review “LJIEE TAKER F722 BLS 60A V2 STACK”

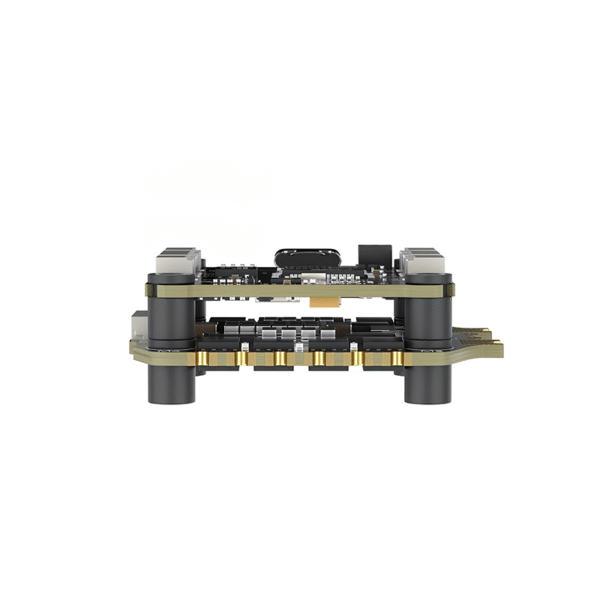

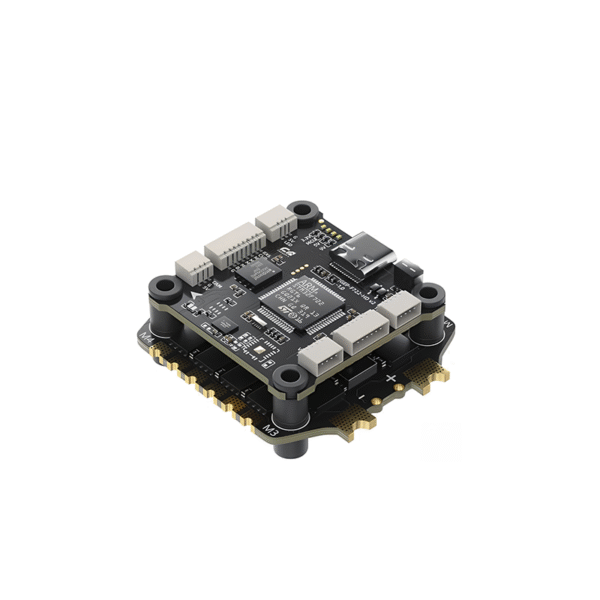

LJIEE TAKER F722 BLS 60A V2 STACK
