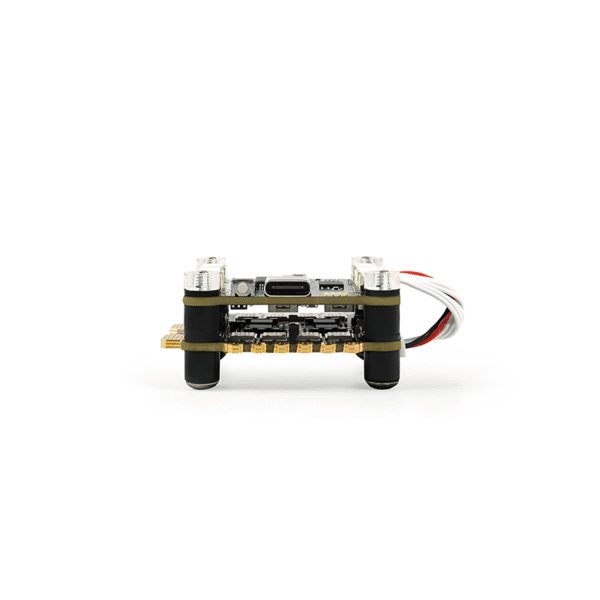

LJIEE TAKER F722 BL32 70A STACK is a plug-and-play flying tower system designed for DJI Air Unit, featuring an STM32F722 chip, ICM42688-P gyroscope, 16M black box, and TAKER H70_96K 4IN1 ESC. It supports direct connection to DJI Air Unit, has an upgraded Type-C USB interface, and 9V@2.5A + 5V@3A dual independent BEC for stable power supply, delivering strong flight dynamics and a smooth handling experience with a user-friendly installation.
- Uses mainstream STM32F722 chip
- Equipped with the latest ICM42688-P gyroscope
- 16M black box storage
- Integrated LC filter
- Upgraded Type-C USB interface
- Directly pluggable into DJI Air Unit

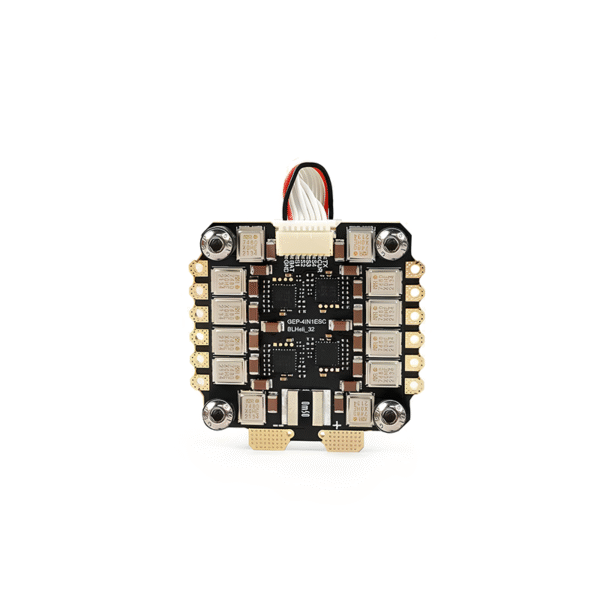

- Paired with TAKER H70_96K ESC (70A continuous current) for strong power and smooth flight feel
- Simple, reasonable installation with shock absorbers for stable gyroscope operation
- 9V@2.5A + 5V@3A dual independent BEC
- MCU：STM32F722
- IMU：ICM42688-P (SPI)
- Air Unit Connection：Direct plugging into DJI Air Unit
- Black Box：16M onboard
- USB Interface：Type-C
- OSD：BetaFlight OSD w/ AT7456E chip
- BEC：5V@3A, 9V@2.5A dual BEC
- Firmware Target：LJIEE F722
- Size：36.85×36.85mm, hole 30.5×30.5mm（φ4mm hole converts to φ3mm with silicone shock-absorbing circle）
- Input Voltage：3-6S LiPo
- UART：5
- Power Filter：Integrated LC filter
- Weight：8.1g
- Input Voltage：3-6S Lipo
- Galvanometer：Support
- PWM frequency: 24~96K
- Continuous Current：70A
- Burst Current：80A（5 seconds）
- Support Protocol：Dshot 150/300/600
- Size：42.6×42.1mm, hole 30.5×30.5mm（φ4mm hole converts to φ3mm with silicone shock-absorbing circle）
- Weight：12.8g
- Target：LJIEE_G071_4IN1_96K
- 1 x Flight Controller
- 1 x ESC
- 1 x Capacitor
- 1 x DJI Air Unit Adapter Cable
- 1 x Flight Controller Adapter Cable
- 1 x XT60 Power cable
- 4 x M3*30 Screws
- 4 x M3*25 Screws
- 8 x Nylon nuts
- 8 x Silicone grommets
- 2 x SH1.0 4-pin silicone cables
- 1 x Camera connection cable
