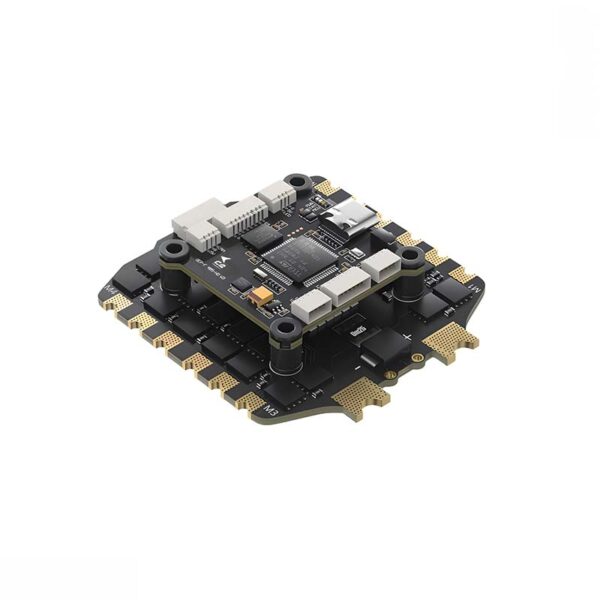

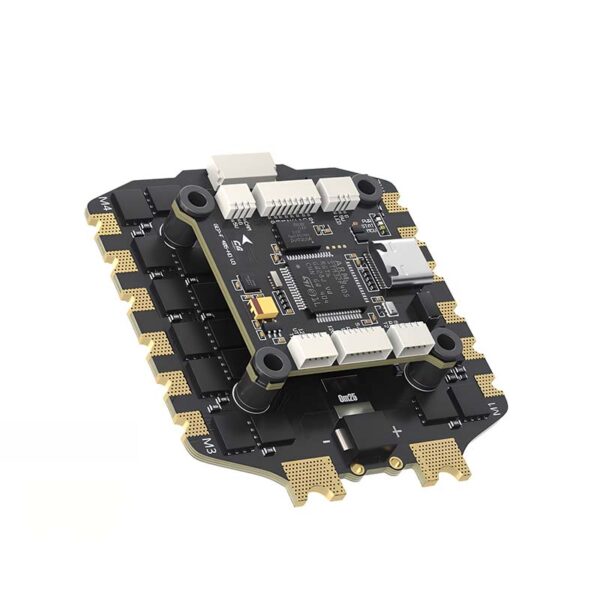

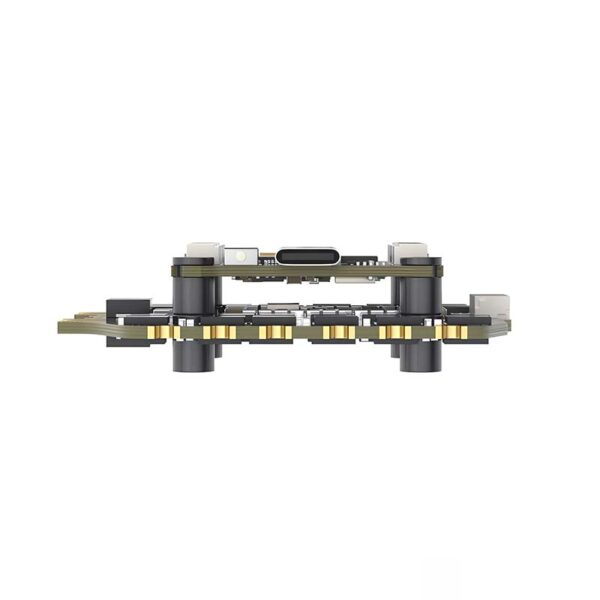

LJIEE TAKER F405 BLS 80A V2 STACK

# Features: Uses STM32F405 chip, 42688-P gyroscope, 16M black box, integrated LC filter, Type-C USB, direct DJI Air Unit connection, compatible with TAKER H80_BLS 80A 4IN1 ESC (dual MOS, high current), easy installation with stable gyro performance via shock absorbers, and dual BEC (12V@2.5A + 5V@3A).

# Specifications:

LJIEE-F405-HD V3 Flight Controller: STM32F405 MCU, ICM42688-P IMU, 16M black box, 6 motor outputs, Type-C USB, supports barometer/BetaFlight OSD, 3-6S input, 6 UARTs, 37.15×37.15mm, 7.3g.
TAKER H80_BLS 80A 4IN1 ESC: 3-6S input, 80A continuous/85A burst current, Dshot support, 56.3×61.1mm, 28.1g, target B_X_30.

Features

Use mainstream STM32F405 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the DJI Air Unit
With TAKER H80_BLS 80A 4IN1 ESC, Dual MOS, high current, silky flight
Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
12V@2.5A + 5V@3A dual independent BEC

Specifications

LJIEE F405-HD V3 Flight Controller

Parameter	Details
MCU	STM32F405
IMU	ICM42688-P (SPI)
Air Unit Connection	Direct plugging into DJI Air Unit
Black Box	16M onboard
Barometer	Support
Motor outputs	M1-M6
USB Interface	Type-C
OSD	BetaFlight OSD w/ AT7456E chip
BEC	5V@3A, 12V@2.5A dual BEC
Firmware Target	LJIEE F405
Size	37.15×37.15mm
Mounting	30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
Input Voltage	3-6S LiPo
UART	6 UARTs
Power Filter	Integrated LC filter
Weight	7.3g

TAKER H80_BLS 80A 4IN1 ESC

Parameter	Details
Input Voltage	3-6S Lipo
Ammeter	Support
Continue Current	80A
Burst Current	85A（5 second）
Support Protocol	Dshot 150/300/600
Size	56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight	28.1g
Target	B_X_30
