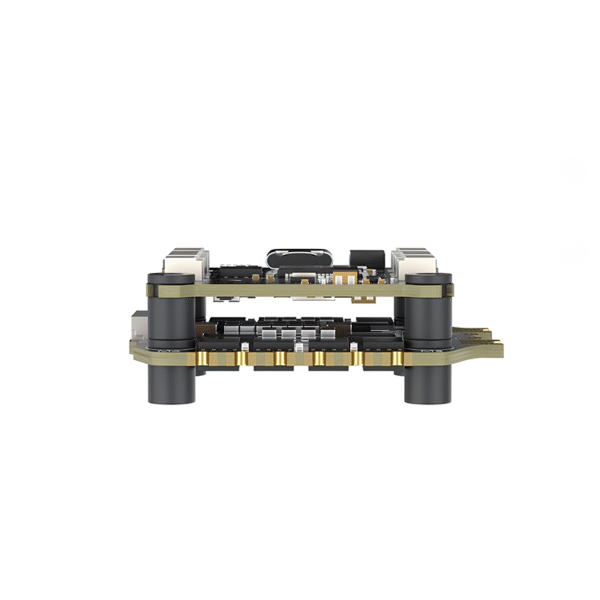

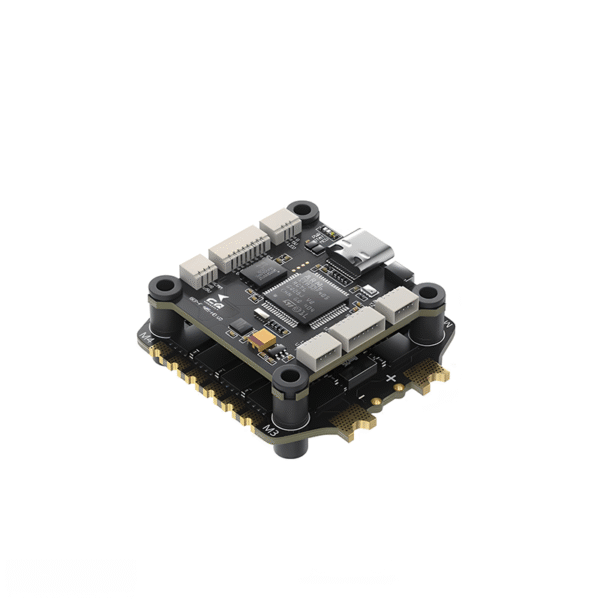

LJIEE TAKER F405 BLS 60A V2 STACK

# Features: Uses STM32F405 chip, 42688-P gyroscope, 16M black box, integrated LC filter, Type-C USB, direct DJI Air Unit connection, paired with TAKER H60_BLS 60A 4IN1 ESC for smooth flight, stable gyro performance via shock absorbers, and dual BEC (12V@2.5A + 5V@3A).

# Specifications:

LJIEE-F405-HD V3 Flight Controller: STM32F405 MCU, ICM42688-P IMU, BMP280 barometer, 6 motor outputs, Type-C USB, BetaFlight OSD, 3-6S input, 6 UARTs, 30.5×30.5mm mounting, 7.3g.
TAKER H60_BLS 60A 4IN1 ESC: 3-6S input, 60A continuous/65A burst current, Dshot support, 42×45.7mm size, 14.9g, target B_X_30.

# Included: Flight controller, ESC, capacitor, adapter cables (DJI Air Unit, flight controller, XT60 power), screws, nuts, silicone grommets, and camera cable.

Features

Use mainstream STM32F405 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the DJI Air Unit
With TAKER H60_BLS 60A 4IN1 ESC, the flying feel is silky
Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
12V@2.5A + 5V@3A dual independent BEC

Specifications

LJIEE-F405-HD V3 Flight Controller

Parameter	Details
MCU	STM32F405
IMU	ICM42688-P (SPI)
Air Unit Connection	Direct plugging into DJI Air Unit
Black Box	16M onboard
Barometer	BMP280
Motor outputs	M1-M6
USB Interface	Type-C
OSD	BetaFlight OSD w/ AT7456E chip
BEC	5V@3A, 12V@2.5A dual BEC
Firmware Target	LJIEE F405
Mounting	30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
Input Voltage	3-6S LiPo
UART	6 UARTs
Power Filter	Integrated LC filter
Weight	7.3g

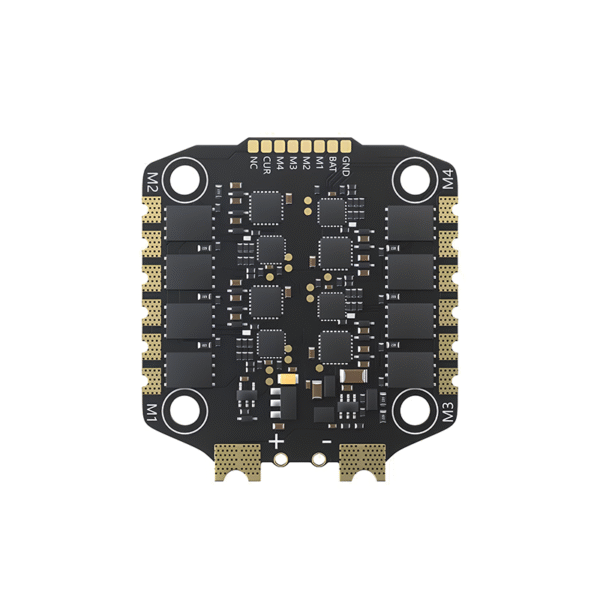

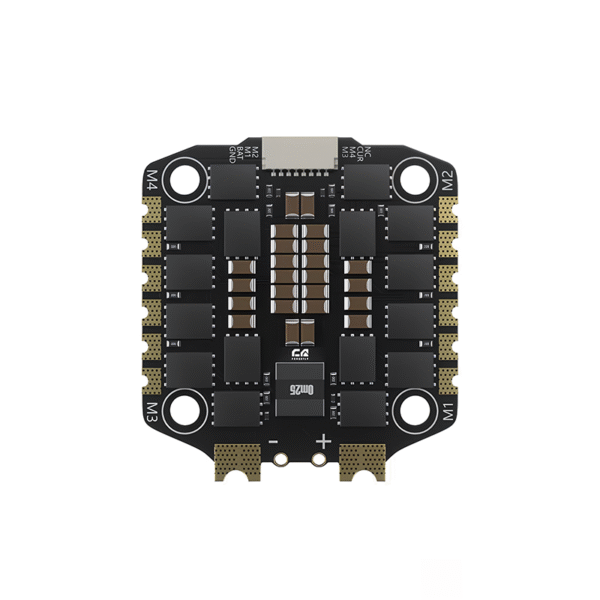

TAKER H60_BLS 60A 4IN1 ESC

Parameter	Details
Input Voltage	3-6S Lipo
Ammeter	Support
Continue Current	60A
Burst Current	65A（5 second）
Support Protocol	Dshot 150/300/600
Size	42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight	14.9g
Target	B_X_30
