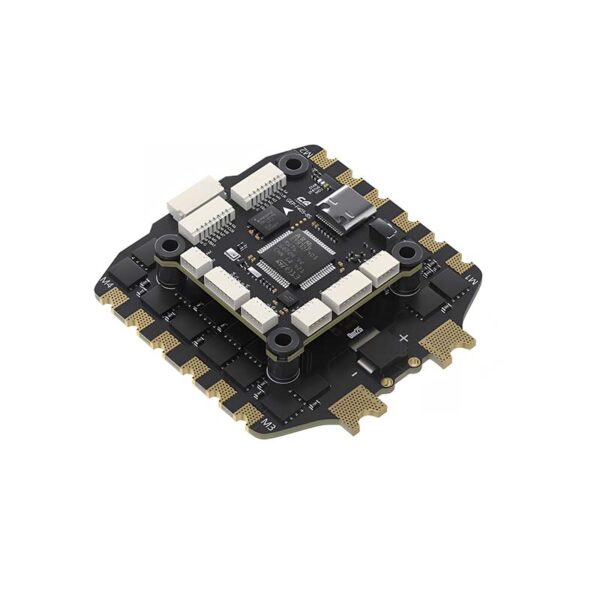

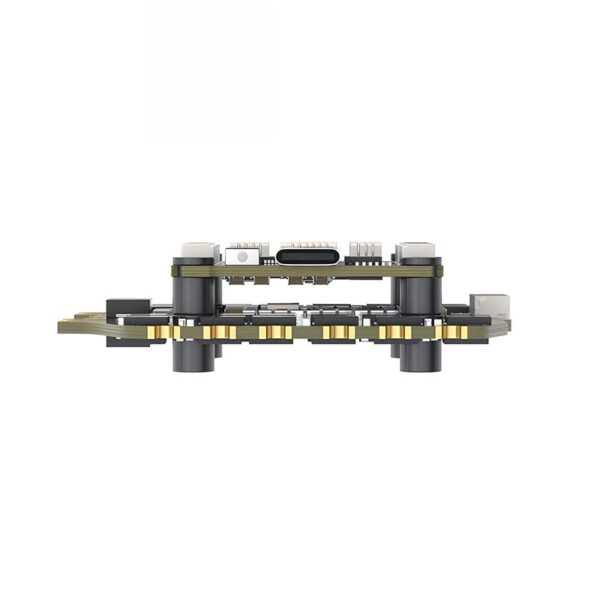

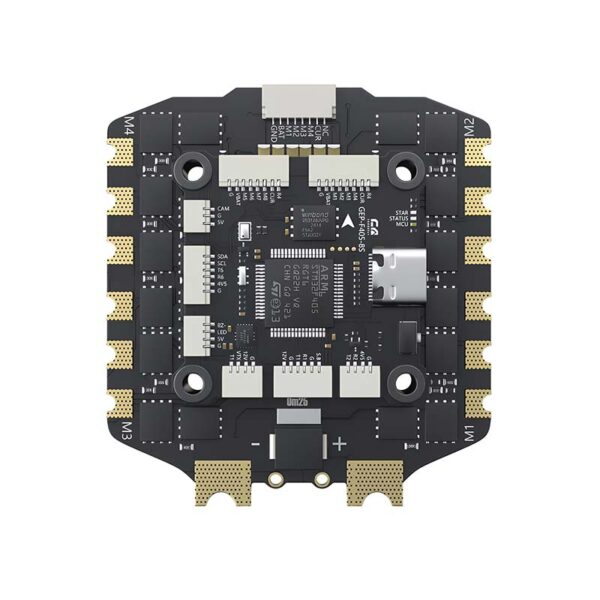

LJIEE TAKER F405 BLS 100A 8S STACK

# FEATURES: Uses STM32F405 chip and ICM42688-P gyroscope, 16M black box, integrated LC filter, Type-C port, direct DJI Air Unit connection, compatibility with TAKER H100_8S_BLS 100A 4IN1 ESC (supports 8S LiPo), dual BEC (12V@3A + 5V@3A), stable gyro performance via shock absorbers.
# SPECS: LJIEE F405-8S FC (37×37mm, 8.3g, 3-8S input, 6 UARTs); TAKER H100_8S ESC (100A continuous/105A burst, 56.3×61.1mm, 28.8g).
# INCLUDED: FC, ESC, capacitor, various cables (DJI, adapter, etc.), XT90 plug, screws, nuts, silicone pads.
Categories: , , Tags: , Brand:
Inquire Now

    Features

    • Uses mainstream STM32F405 chip
    • Equipped with the latest ICM42688-P gyroscope
    • 16M black box storage
    • Integrated LC filter
    • Upgraded Type-C USB interface
    • Directly plugs into the DJI Air Unit
    • Compatible with TAKER H100_8S_BLS 100A 4IN1 ESC (Dual MOS, high current) for silky-smooth flight
    • Supports 8S LiPo battery
    • Simple and reasonable installation; shock absorbers ensure stable gyroscope performance
    • 12V@3A + 5V@3A dual independent BEC

    Specifications

    GEP-F405-8S Flight Controller

    Parameter Details
    MCU STM32F405
    IMU ICM42688-P (SPI)
    Air Unit Connection Direct plugging into DJI Air Unit
    Black Box 16M onboard
    Barometer Supported
    Motor Outputs M1-M8
    USB Interface Type-C
    OSD BetaFlight OSD with AT7456E chip
    BEC 5V@3A, 12V@3A dual BEC
    Firmware Target LJIEE 405_BT_HD
    Size 37×37mm
    Mounting 30.5×30.5mm; φ4mm hole → φ3mm with silicone shock-absorbing circle
    Input Voltage 3-8S LiPo
    UART 6 UARTs
    Power Filter Integrated LC filter
    Weight 8.3g

    TAKER H100_8S_BLS 100A 4IN1 ESC

    Parameter Details
    Input Voltage 3-8S LiPo
    Ammeter Supported
    Calibration Value 200
    Continuous Current 100A
    Burst Current 105A (for 5 seconds)
    Supported Protocols Dshot 150/300/600
    Size 56.3×61.1mm; Hole pattern: 30.5×30.5mm; φ4mm hole → φ3mm with silicone shock-absorbing ring
    Weight 28.8g
    Target B_X_3

    Package Includes

    • 1 x LJIEE F405-8S Flight Controller
    • 1 x TAKER H100_8S_BLS 100A 4IN1 ESC
    • 1 x Electrolytic capacitor (50V 4700uF)
    • 1 x DJI connection cable (SH1.0 6pin 100mm)
    • 2 x FC adapter cables (SH1.0 8pin 30mm)
    • 1 x Receiver silicone cable (SH1.0 4pin 150mm)
    • 1 x Camera connection cable (SH1.0-SH1.25 3pin 135mm)
    • 1 x VTX connection cable (SH1.0 4pin-6pin 100mm)
    • 1 x XT90 battery plug
    • 1 x Red and black power cable (10AWG 240mm)
    • 4 x M3×30 screws
    • 4 x M3×25 screws
    • 8 x Nylon nuts (M3)
    • 12 x Silicone anti-shake pads (M3)
