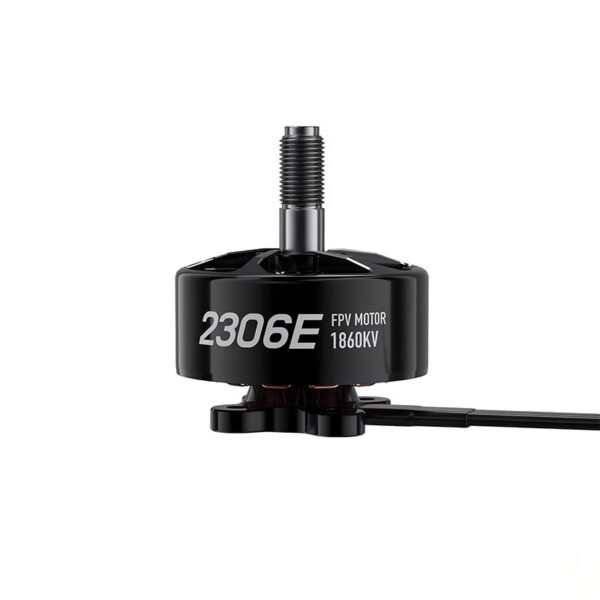

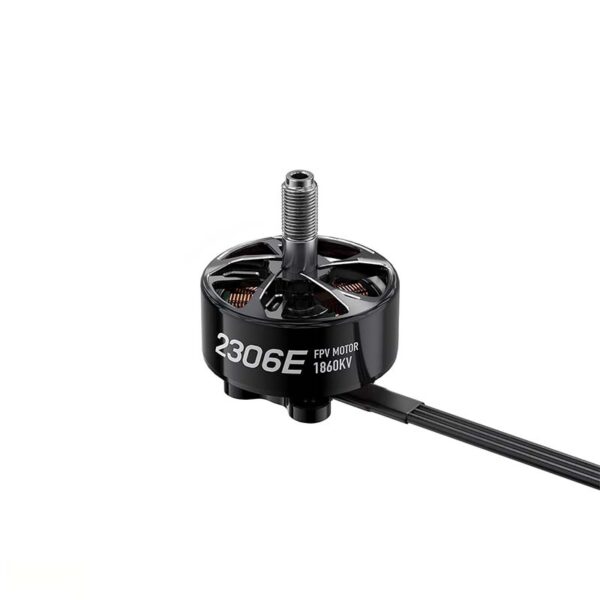

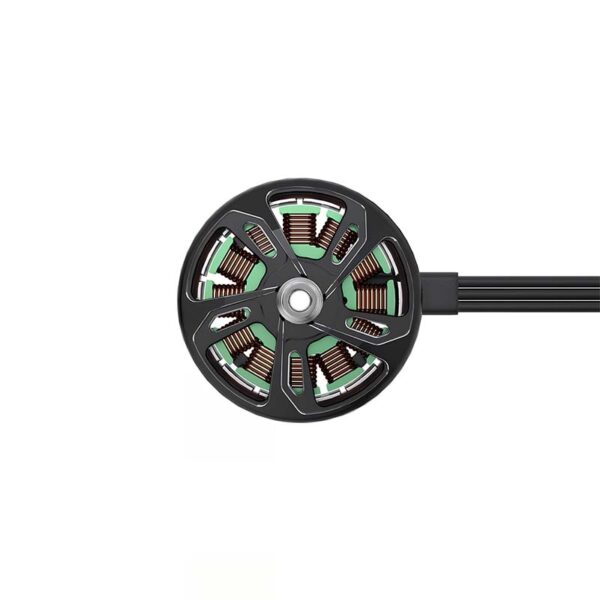

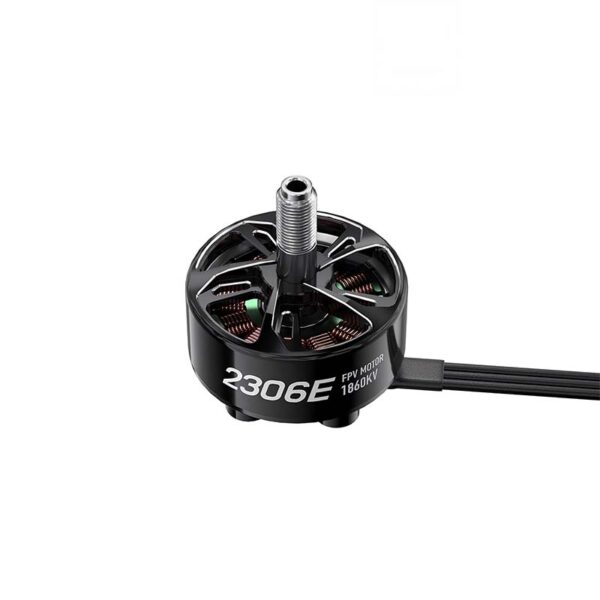

LJIEE SPEEDX2 2306E Drone Motor

LJIEE SPEEDX2 2306E Drone Motor

LJIEE SPEEDX2 2306E Drone Motor

LJIEE SPEEDX2 2306E Drone Motor

LJIEE SPEEDX2 2306E Drone Motor

The SPEEDX2 2306E Motor (1860KV) offers 972.7W max watt, 39.18A peak current, uses N52H magnets and NMB/NSK bearings, fits 4-5inch propellers and 40A/6S ESC, weighs 33.3g, and is suitable for 4-5inch racing FPV quads.

Categories: Drone Accessories, Drone Motor Tags: Brushless Motor, Drone Motor, FPV Motor Brand: LJIEE

Description
Reviews (0)

Model: SPEEDX2 2306E Motor

KV: 1860
Max Watt: 972.7W
Peak Current: 39.18A
Interphase Resistance: 83.17mΩ
Propeller: 4-5inch
Magnet: N52H
Bearing: NMB/NSK
Stator Configuration: 12N14P
Dimension: 29*18.6mm
Shaft Diameter: 5mm
Shaft Length: 13.5mm
Mounting Hole Size：16*16mm
Wire Specification: 20AWG/150mm
Compatible ESC: 40A/6S
Input Voltage: 6S
Winding: Single-strand copper winding
Color: Black
Weight：33.3g (including wire)
Compatible Models: Suitable for 4inch-5inch racing FPV quads
