The SPEEDX2 2207E series features a sleek, all-black glossy design with extensive cutouts for optimal heat dissipation, ensuring durability and impact resistance. Its high responsiveness provides effortless control in every maneuver.
- Reduced rotor-stator gap ensures rapid response for seamless freestyle flying.
- The fresh all-black glossy design with extensive cutouts enhances heat dissipation for better performance.
- Crafted from 7075 aerospace-grade aluminum with precision CNC machining for a lightweight design.
- Model: SPEEDX2 2207E Motor
- KV: 1960
- Max Watt: 1104.7W
- Peak Current: 44.57A
- Interphase Resistance: 69.85mΩ
- Propeller: 4-5inch-3blade
- Magnet: N52H
- Bearing: NMB/NSK
- Stator Configuration: 12N14P

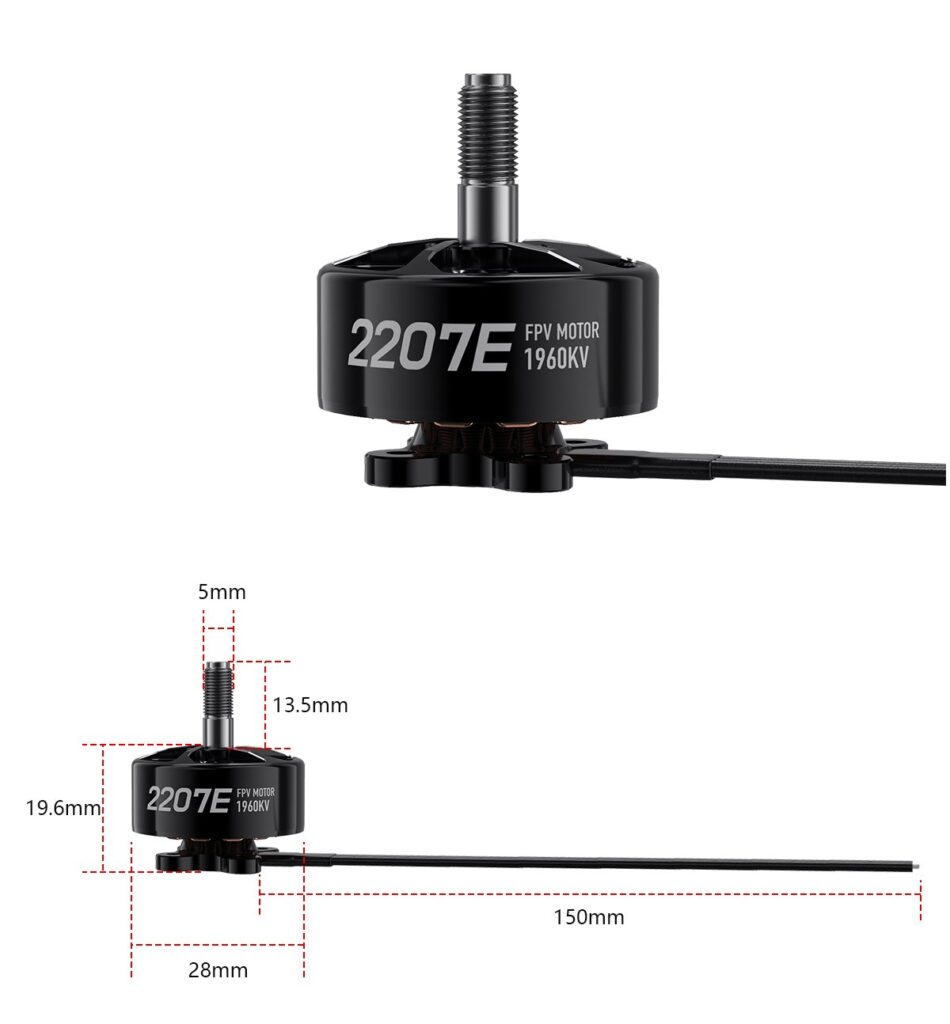

- Dimension: 28*19.6mm
- Shaft Diameter: 5mm
- Shaft Length: 13.5mm
- Mounting Hole Size: 16*16mm
- Wire Specification: 20AWG/150mm
- Compatible ESC: 50A/6S
- Input Voltage: 6S
- Winding: Single-strand copper winding
- Color: Black
- Weight: 34.5g (including wire)
- Compatible Models: Suitable for 4inch-5inch racing FPV quads
