LJIEE SPEEDX2 1404 3000KV/ 4600KV Drone Brushless Motor

The SPEEDX2 1404 motors feature a high-end red and black color scheme, high-performance wear-resistant bearings (NSK/NMB), a lightweight design with strong power, and are suitable for 2-4 inch lightweight chassis.

  • The 3000KV model offers 160W max watt, 10A/3″ peak current, 0.33Ω interphase resistance, works with 12A/2-4S ESC and 14.8V (4S LiPo) input, uses single-strand copper winding, weighs 10.5g (with wire), and suits 3-4 inch lightweight models.
  • The 4600KV version provides 180W max watt, 14.3A/3″ peak current, 0.19Ω interphase resistance, fits 20A/2-4S ESC and 11.1V-14.8V (3S-4S LiPo) input, has single-strand copper winding, weighs 10.5g (with wire), and is for 2-3 inch lightweight models.

Both share specs including N52H magnets, 9N12P configuration, φ18.2mm13.8mm dimension, φ1.5mm shaft diameter, 4mm shaft protruding length, 9mm9mm (M2) mounting holes, and 160mm/26AWG lead.

Categories: , Tags: , , Brand:
Inquire Now

    Feature

    • Red with black color for a high-end look.
    • Equipped with high-performance, wear-resistant bearings.
    • Lightweight design with strong power output.
    • Suitable for 2-inch-4-inch lightweight chassis.

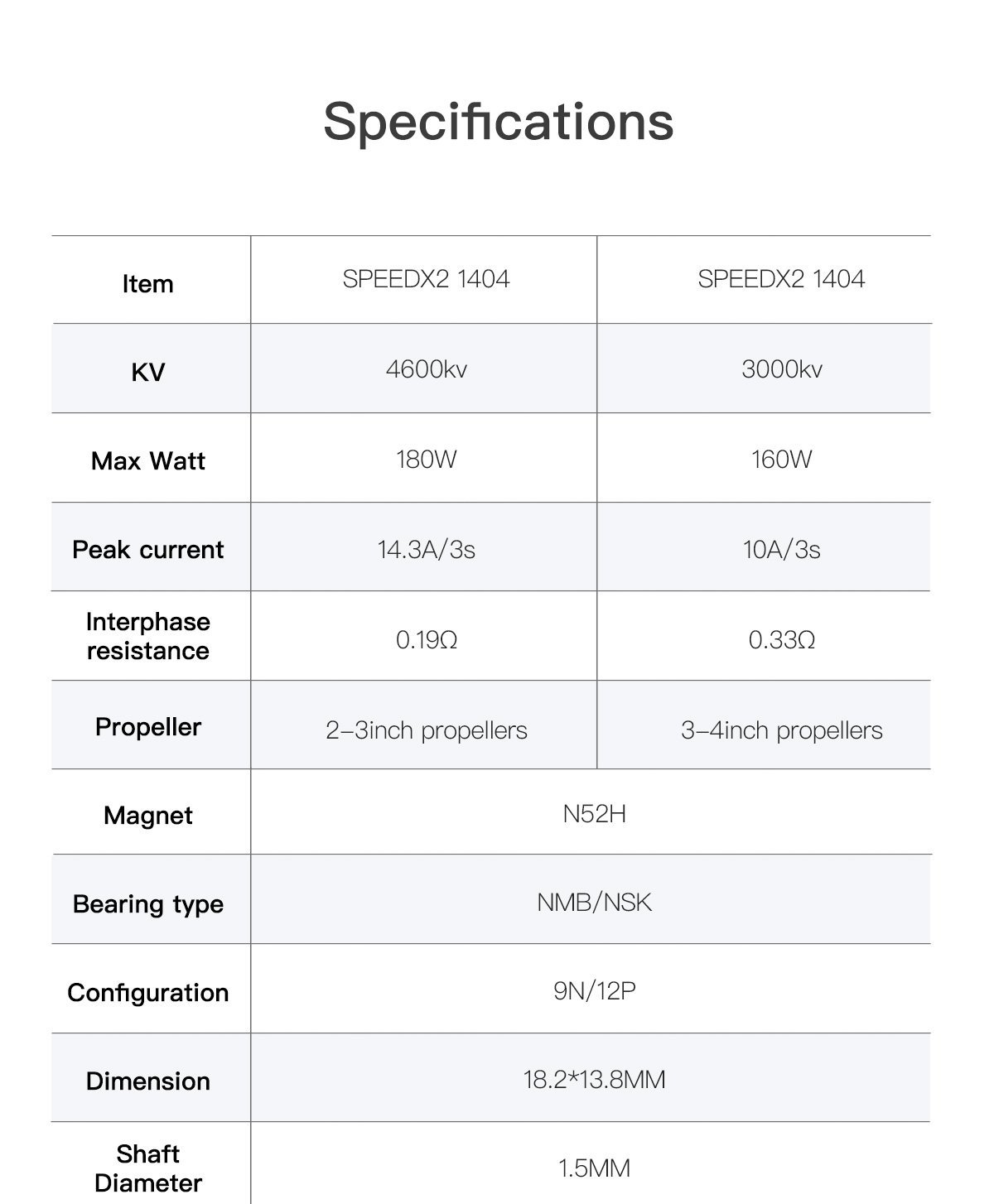

    Specifications

    SPEEDX2 1404 3000KV Motor

    • Model: SPEEDX2 1404 3000KV Motor
    • Max Watt: 160W
    • Peak current: 10A/3″
    • Interphase resistance: 0.33Ω
    • Magnet: N52H
    • Bearing type: NSK/NMB
    • Configuration: 9N12P

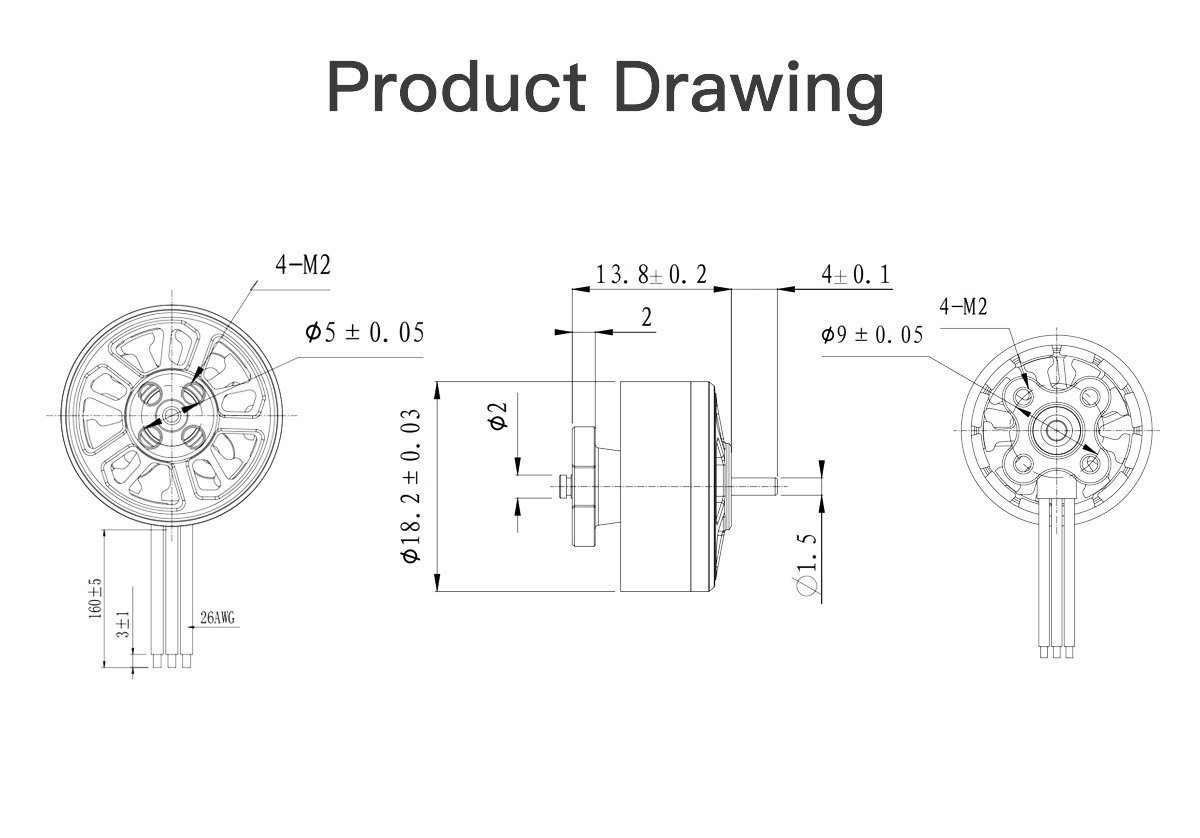

    • Dimension: φ18.2mm*13.8mm
    • Shaft Diameter: φ1.5mm
    • Shaft Protruding Length: 4mm
    • Mounting holes: 9mm*9mm（M2）
    • Lead: 160mm/26AWG
    • ESC: 12A/2-4S（7.4V-14.8V）
    • Input Volts: 14.8V（4S LiPo)
    • Winding: Single strand copper winding

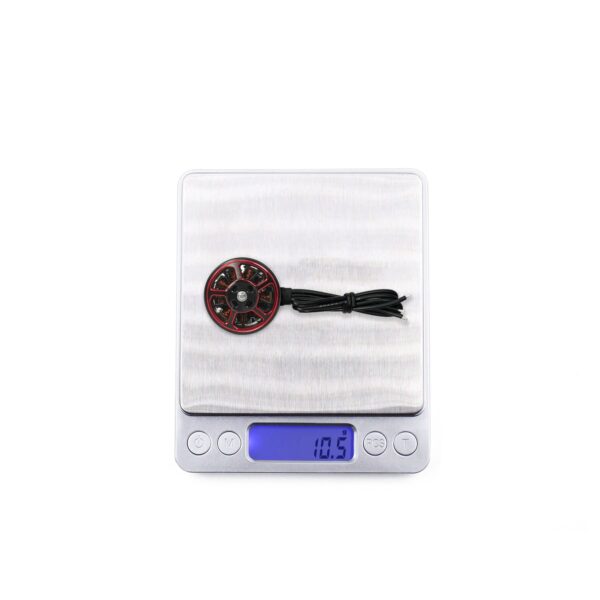

    • Weight: 10.5g (included wire)
    • Suitable for: 3 inch – 4 inch lightweight models

    SPEEDX2 1404 4600KV Motor

    • Model: SPEEDX2 1404 4600KV Motor
    • Max Watt: 180W
    • Peak current: 14.3A/3″
    • Interphase resistance: 0.19Ω
    • Magnet: N52H
    • Bearing type: NSK/NMB
    • Configuration: 9N12P
    • Dimension: φ18.2mm*13.8mm
    • Shaft Diameter: φ1.5mm
    • Shaft Protruding Length: 4mm
    • Mounting holes: 9mm*9mm（M2）
    • Lead: 160mm/26AWG
    • ESC: 20A/2-4S（7.4V-14.8V）
    • Input Volts: 11.1V – 14.8V（3S – 4S LiPo)
    • Winding: Single strand copper winding
    • Weight: 10.5g (included wire)
    • Suitable for: 2 inch – 3 inch lightweight models
