LJIEE SPEEDX2 1102 10000KV Brushless Motor

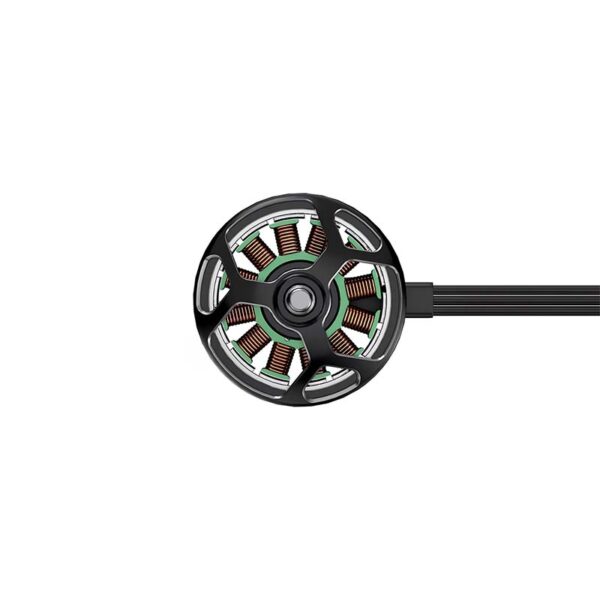

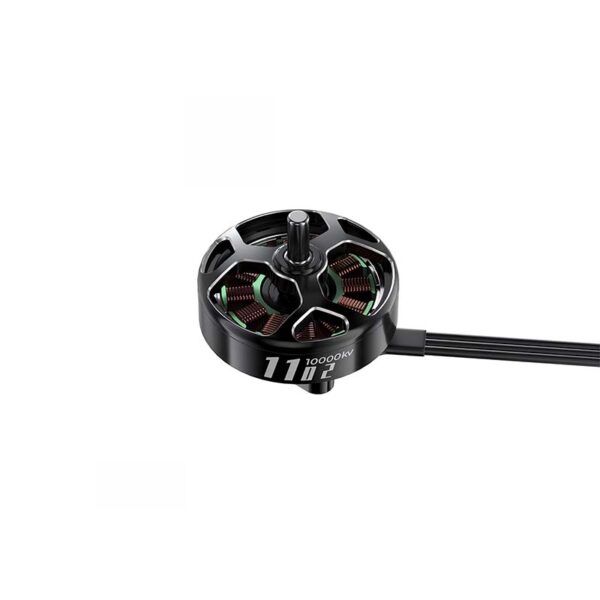

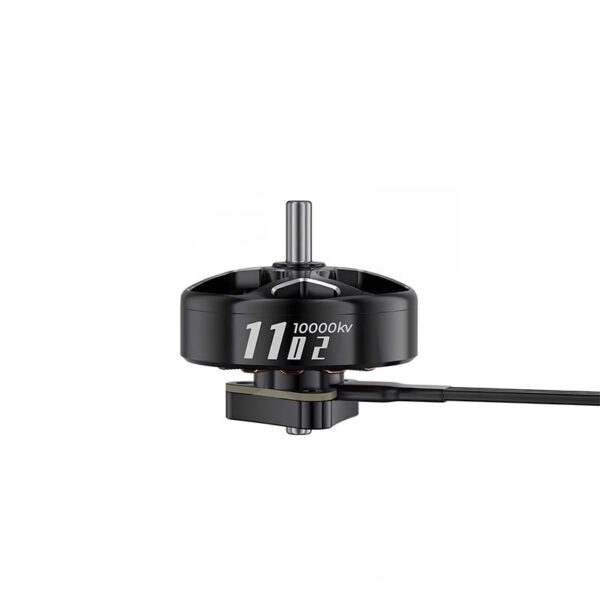

# The SPEEDX2 1102 10000KV motor boasts an exquisite matte black appearance with bright edges. It features high-quality, high-precision, and durable NSK/NMB bearings, a three-hole screw base for lightweight design, and is suitable for 1.6-2 inch lightweight models.
# Specifications include 59.6W max watt, 7.45A peak current, 251mΩ interphase resistance, N52H magnet, 9N12P configuration, φ13.8mmx12.7mm dimension, φ1.5mm shaft diameter, 3.5mm shaft protruding length, 3-φ6.6mm mounting holes, 35mm/28AWG lead, 12A ESC compatibility, 8.4V (2S LiPo) input, multi-strand copper winding, and 2.83g weight (with wire).
# Included are 1 motor and 6 M1.4*3 round torx screws.

Features

  • Exquisite and beautiful appearance with matte black finish and bright edges.
  • Equipped with high-quality, high-precision, and durable bearings.
  • Three-hole screw base for a lightweight design.
  • Suitable for 1.6-inch-2-inch lightweight models.

Specifications

  • Model: SPEEDX2 1102 10000KV Motor
  • Max Watt: 59.6W
  • Peak current: 7.45A
  • Interphase resistance: 251mΩ
  • Magnet: N52H
  • Bearing type: NSK/NMB
  • Configuration: 9N12P

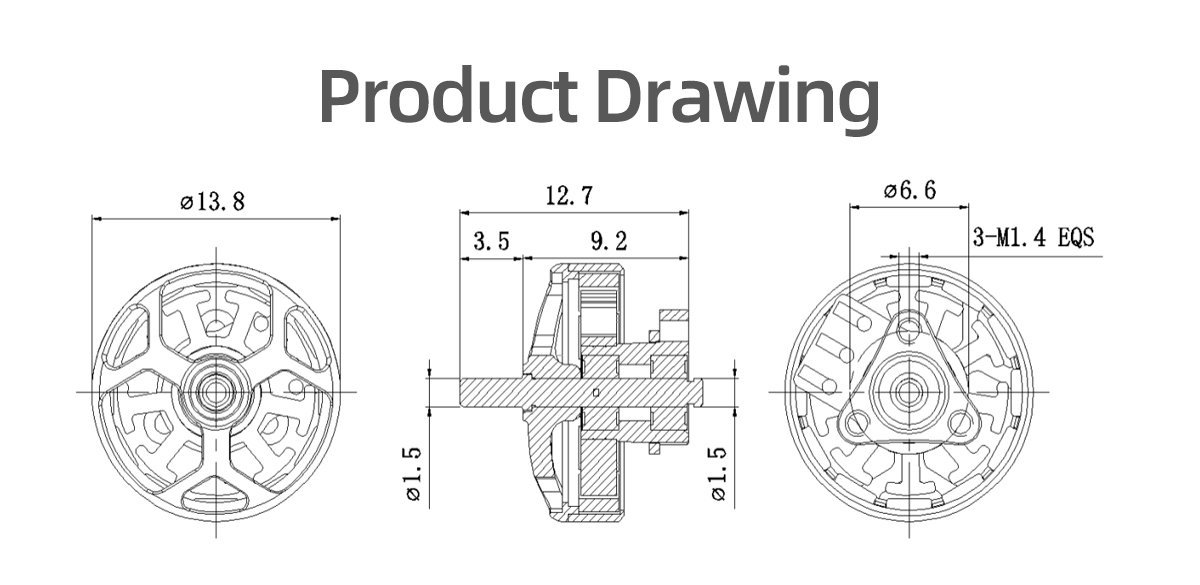

  • Dimension: φ13.8mmx12.7mm
  • Shaft Diameter: φ1.5mm
  • Shaft Protruding Length: 3.5mm
  • Mounting holes: 3-φ6.6mm
  • Lead: 35mm/28AWG
  • ESC: 12A
  • Input Volts: 8.4V(2S LiPo)
  • Winding: multi strand copper winding
  • Weight: 2.83g (included wire)
  • Suitable for: 1.6 inch -2 inch lightweight models

Includes

  • 1 x SPEEDX2 1102 motor
  • 6 x M1.4*3 Round torx screw
