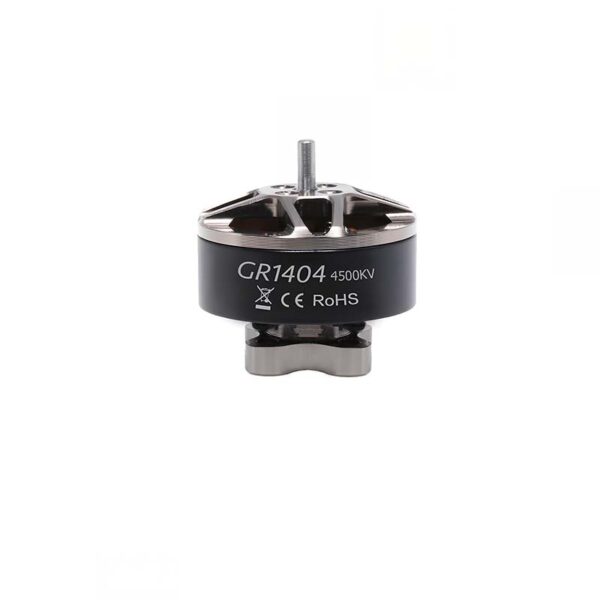

LJIEE GR1404 4500KV Motor

LJIEE GR1404 4500KV Motor

LJIEE GR1404 4500KV Motor

LJIEE GR1404 4500KV Motor

LJIEE GR1404 4500KV Motor

LJIEE GR1404 4500KV Motor

The GR1404 motor has a KV of 4500, 9N12P configuration, 14mm stator diameter, 4mm stator length, 1.5mm shaft diameter, Φ18.3 * 14.5mm dimensions, 9mm hole position, 9.8g weight, supports 2~4S Lipo, with max continuous current 13.38A (180S) and other related parameters.

Categories: Drone Accessories, Drone Motor Tags: Drone Motor, FPV Motor

Description
Reviews (0)

Specification：

Item：GR1404
KV: 4500

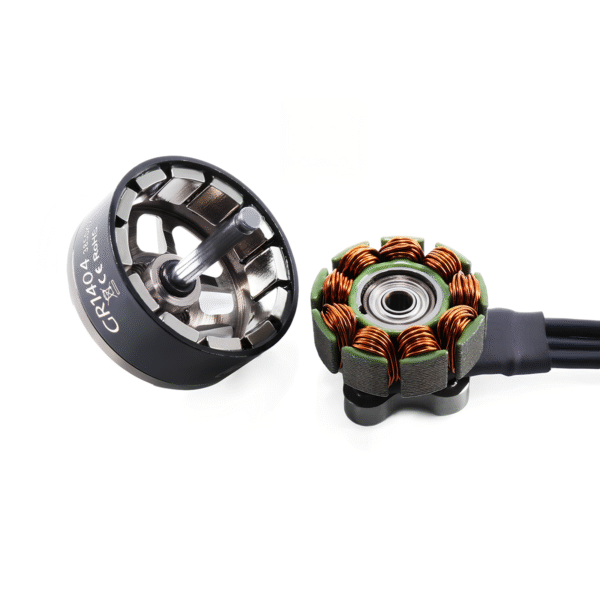

Configuration: 9N12P
Stator Diameter：14mm
Stator Length：4mm
Shaft Diameter: 1.5mm
Motor Dimensions: Φ18.3 * 14.5mm

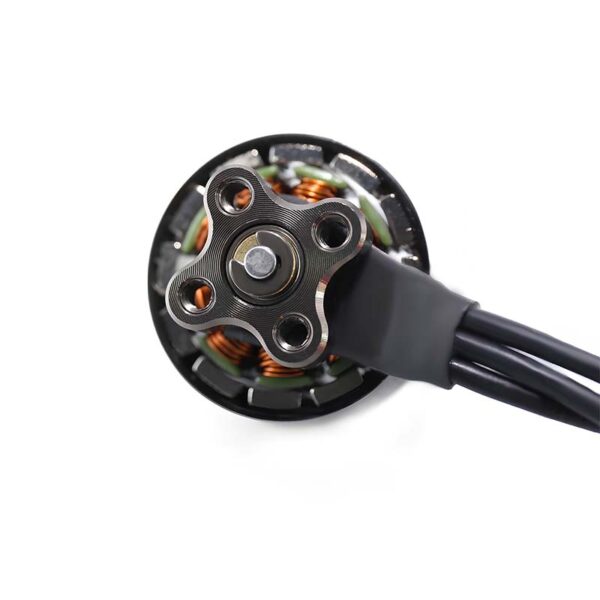

The hole position of motor：9mm
Weight: 9.8g
Idle current@8V(A)：≤0.51
No.of Cells(Lipo): 2~4S
Max Continuous Power(180S): 214
Internal Resistance: 0.213mΩ
Max Current(180S): 13.38A
Packaging dimensions: 60 × 60 × 40 mm
