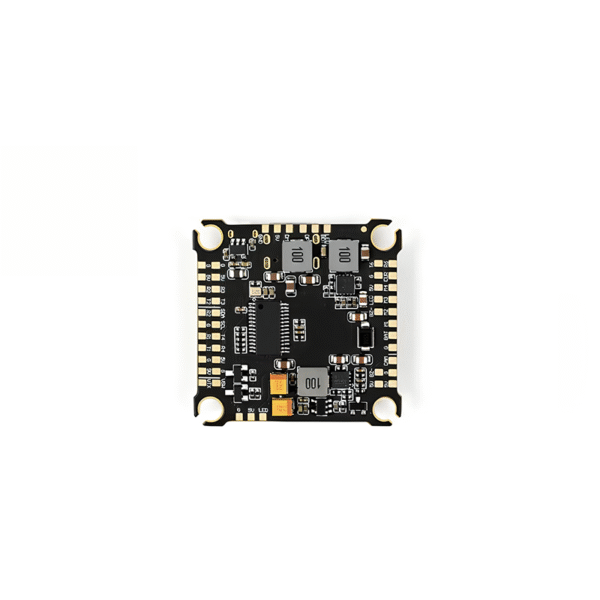

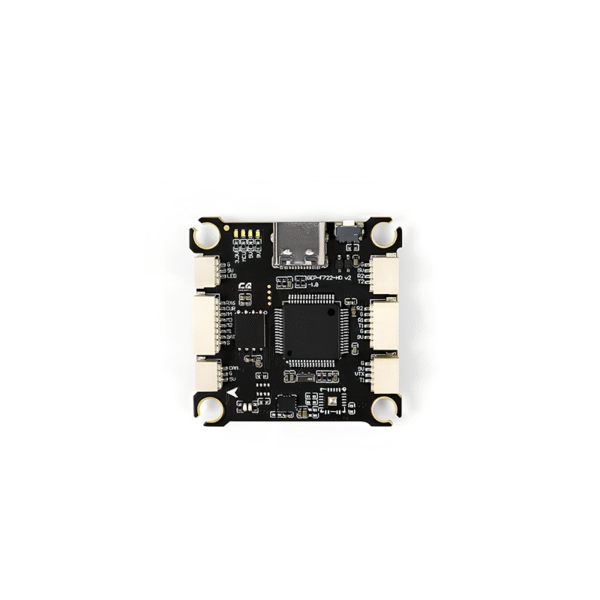

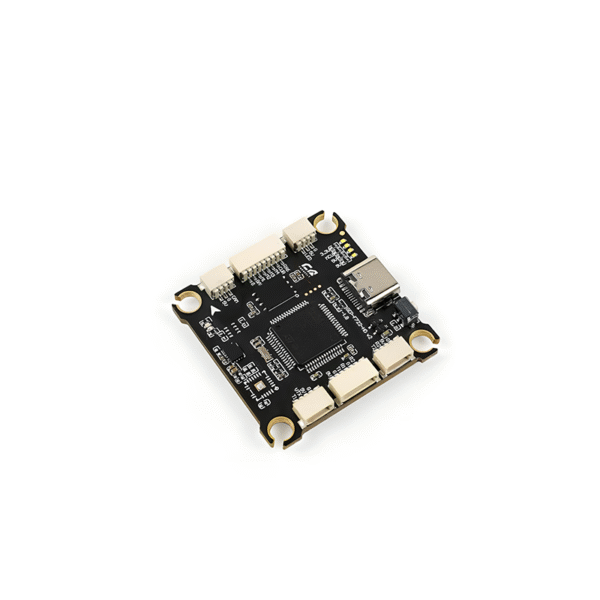

LJIEE F722-HD V2 Flight Controller

This component features an STM32F722 MCU, ICM42688-P (SPI) IMU, direct DJI Air Unit connection, 16M onboard black box, Type-C USB, BetaFlight OSD with AT7456E chip, 5V@3A/9V@2.5A dual BEC, LJIEE F722 firmware, 36.85×36.85mm size (30.5×30.5mm holes, φ4mm to φ3mm with silicone grommets), 3-6S LiPo input, 5 UARTs, integrated LC filter, and 8.1g weight.

Specifications

MCU：STM32F722
IMU：ICM42688-P (SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
USB Interface：Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A, 9V@2.5A dual BEC
Firmware Target：LJIEE F722
Size：36.85×36.85mm, hole 30.5×30.5mm（φ4mm hole converts to φ3mm with silicone shock-absorbing circle）
Input Voltage：3-6S LiPo
UART：5
Power Filter：Integrated LC filter
Weight：8.1g
