LJIEE F722-45A AIO V2

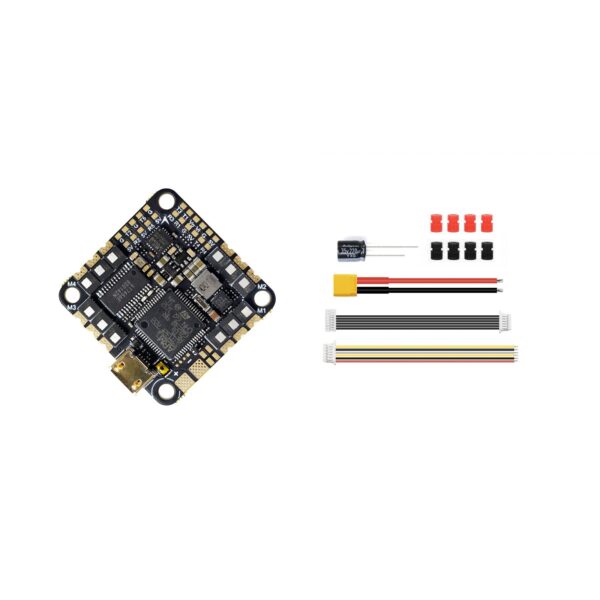

The LJIEE-F722-45A AIO V2 is a compact (32x32mm, 8.8g) flight control system with STM32F722 MCU and 42688 gyro. It features a 45A ESC (55A/10s burst) supporting 2-6S and Dshot600, 5 UART ports, DJI AIR UNIT plug-and-play, OSD, buzzer, LED, and 16Mb BlackBox. Includes cables, capacitor, and damping rings.

Specification

Model Name: LJIEE-F722-45A AIO V2
MCU: STM32F722
IMU: 42688 gyro/accelerometer(SPI)
Firmware target: LJIEE_F722_AIO
OSD: Betaflight OSD w/ AT7456Ev
UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Beeper: YES
LED: YES
USB: Micro USB
BEC output: 5V@1A
Integrated LC Filter
ESC MCU: 8BB21F16G
Continuous current: 45A
MAX current: 55A (10s)
Input: 2~6S
Supports: Dshot600, Oneshot, Multishot
BlackBox: 16Mb
Target: G_H_30

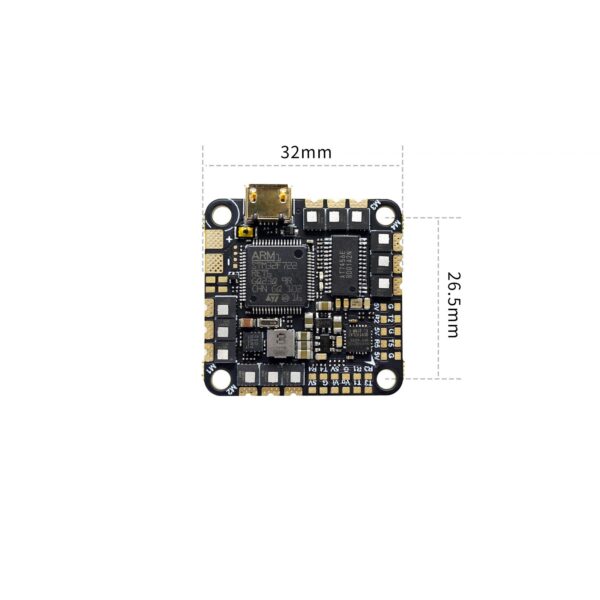

Size: 32x32mm Board
Mounting Hole: 25.5×25.5mm

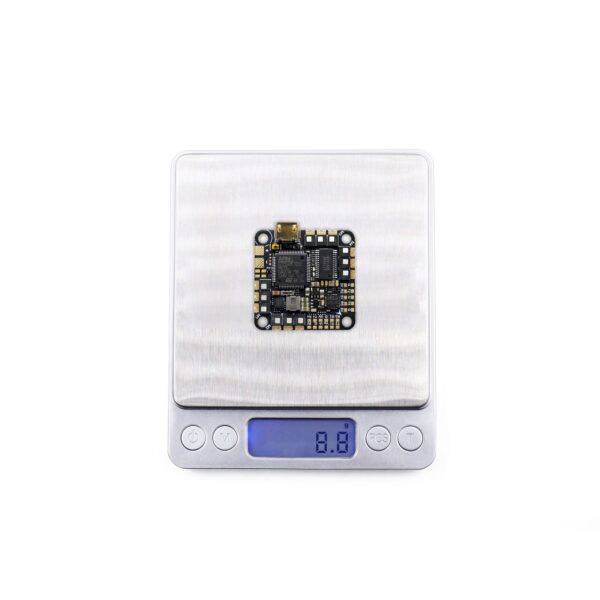

Weight: 8.8g

Features

MCU: STM32F722, with strong performance and higher computing speed.
It has 5 full UART ports, which can connect more external devices.
Design 6p connector for DJI AIR UNIT MODULE, and just plug and play.
The BLheili_S 45A ESC can handle 45A continuous current (55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
Support OSD parameter adjustment, buzzer, led and other functions.
8g ultra light weight.
5mm * 25.5mm mounting hole, suitable for most frames.
