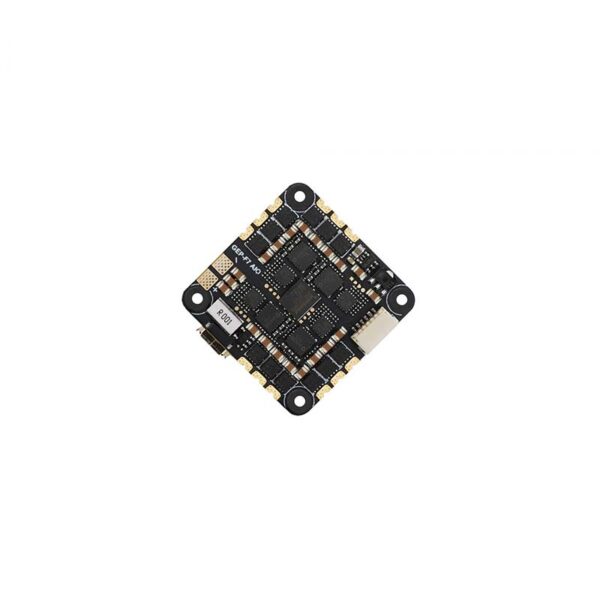

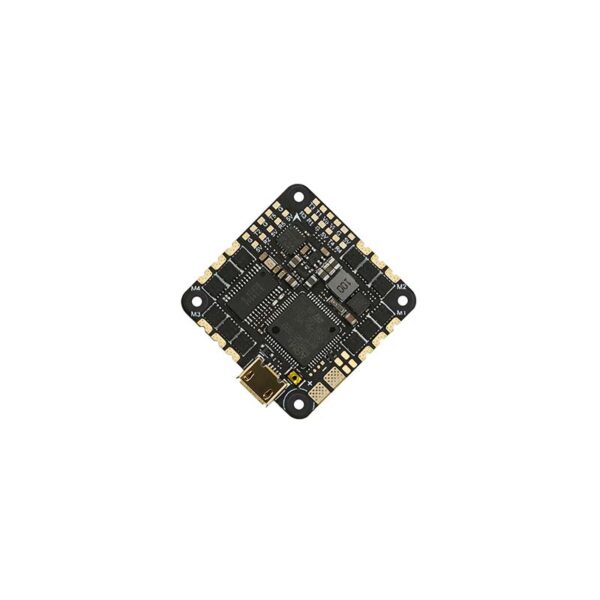

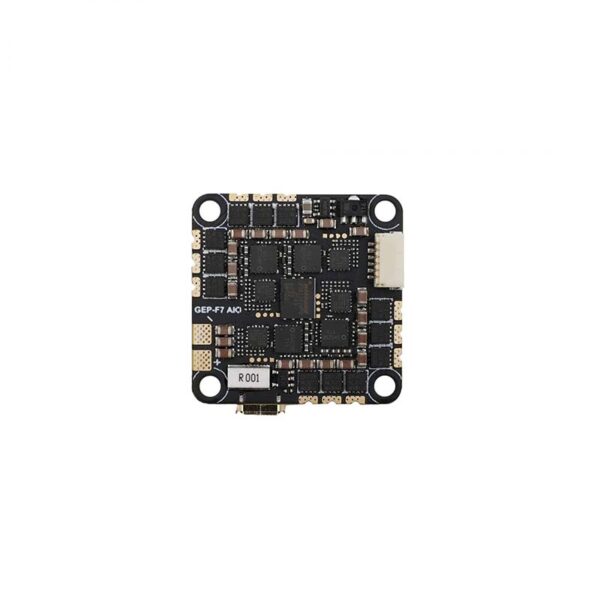

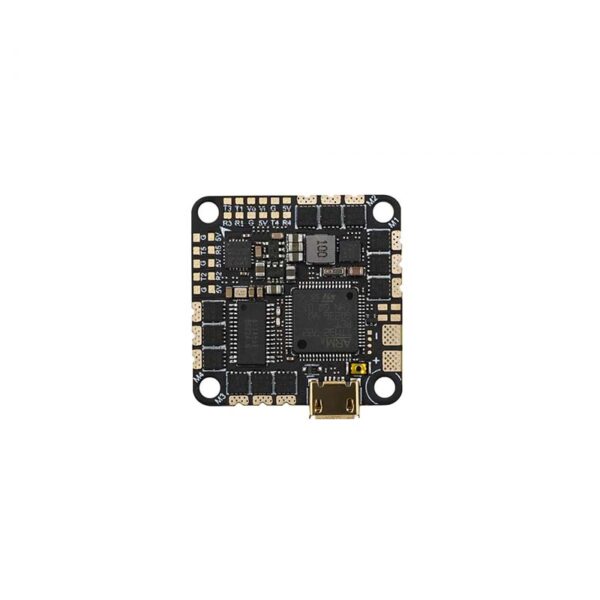

LJIEE F722-35A AIO

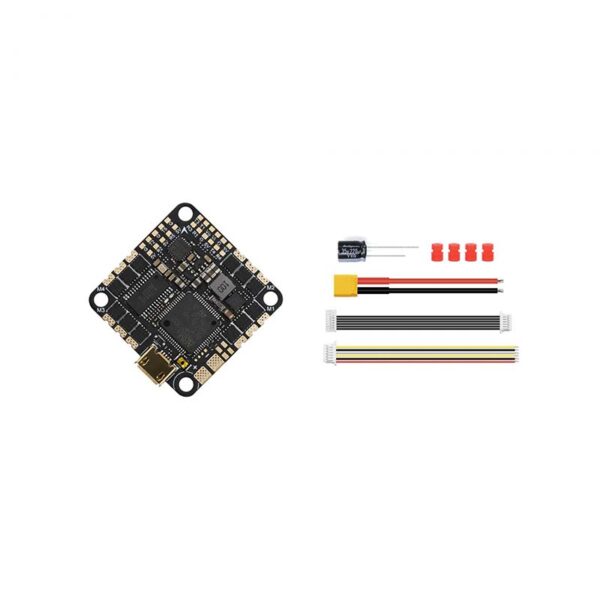

The LJIEE-F722-35A AIO is a lightweight (8.8g) flight control system with STM32F722 MCU and BMI270/42688 gyro. It features a 35A BLheili_S ESC (40A/10s burst) supporting 2-6S, 5 UART ports, DJI AIR UNIT plug-and-play, OSD, buzzer, LED, and 16Mb BlackBox. Measuring 32x32mm with 25.5×25.5mm mounting holes, it includes cables, a capacitor, and damping rings.

Specification

Model Name: LJIEE-F722-35A AIO
MCU: STM32F722
IMU: BMI270/42688 gyro/accelerometer(SPI)
Firmware target: LJIEE_F722_AIO
OSD: Betaflight OSD w/ AT7456Ev
UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Beeper: YES
LED: YES
USB: Micro USB
BEC output: 5V@1A
Integrated LC Filter
ESC MCU: 8BB21F16G
Continuous current: 35A
MAX current: 40A (10s)
Input: 2~6S
Supports: Dshot600, Oneshot, Multishot
BlackBox: 16Mb
Target: G_H_30
Size: 32x32mm Board
Mounting Hole: 25.5×25.5mm
Weight: 8.8g

Features

MCU: STM32F722, with strong performance and higher computing speed.
It has 5 full UART ports, which connect more external devices.

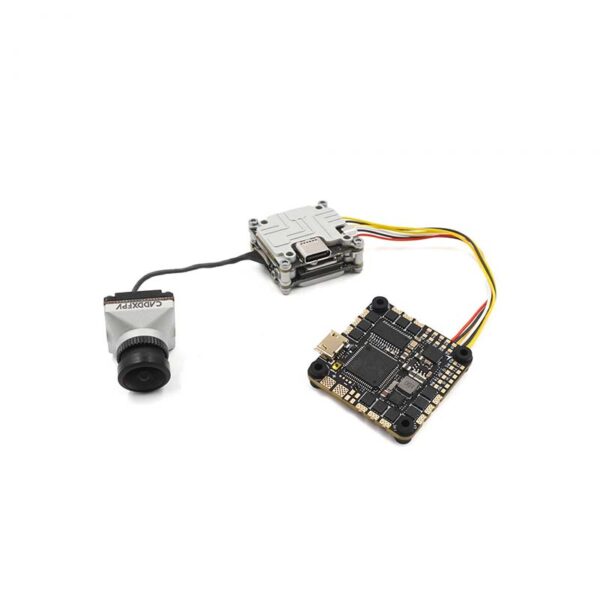

Design 6p connector for DJI AIR UNIT MODULE, and just plug and play.
The BLheili_S 35A ESC can handle 35A continuous current (40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.
Support OSD parameter adjustment, buzzer, led and other functions.
8.8g ultra light weight.
25.5mm * 25.5mm mounting hole, suitable for most frames.
