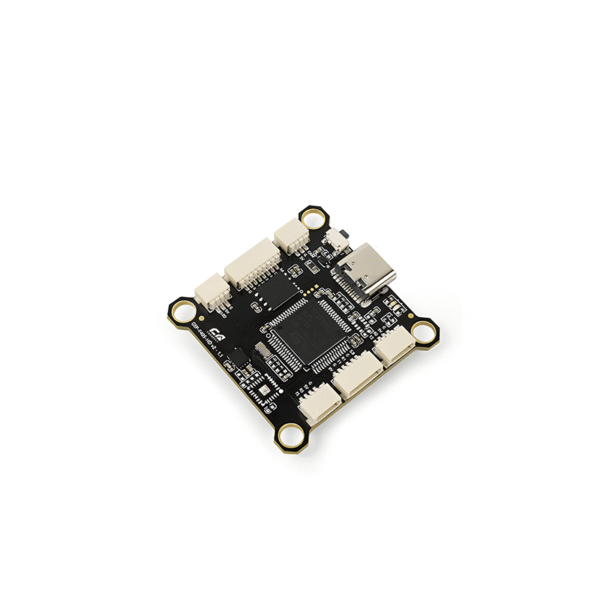

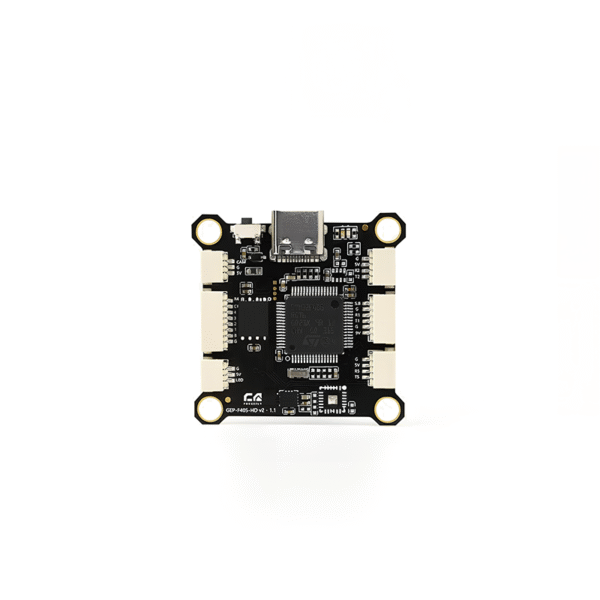

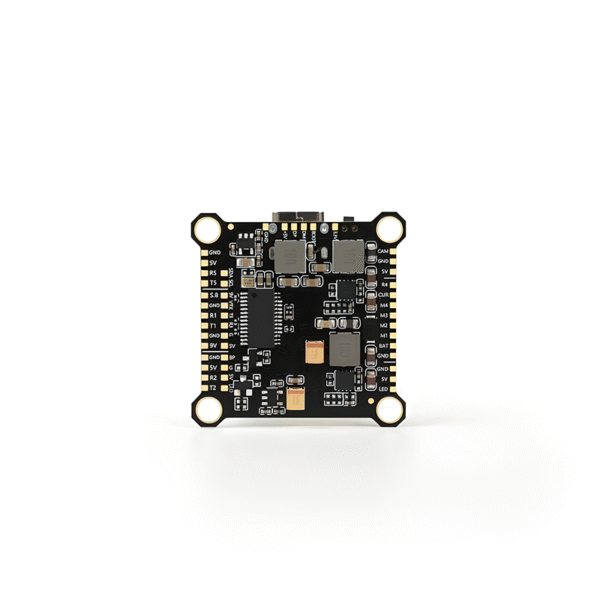

LJIEE F405-HD V2 Flight Controller

# It features the mainstream STM32F405 chip, the latest 42688-P gyroscope, 16M black box storage, integrated LC filter, and upgraded Type-C USB interface. It can be directly plugged into the DJI Air Unit, with a simple installation method and shock absorber for stable gyroscope operation, plus 9V 2.5A + 5V 3A dual independent BEC.

# Specs include STM32F405 MCU, ICM42688-P(SPI) IMU, 16M onboard black box, BetaFlight OSD, 3-6S LiPo input, 6 UARTs, 36.8×36.8mm size, and 7.7g weight.

# Included are a flight controller, DJI Air Unit adapter cable, flight controller adapter cable, 4 nylon nuts, 4 silicone grommets, 2 sh1.0 4-pin silicone cables, and a camera connection cable.

Features

Use mainstream STM32F405 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the DJI Air Unit
Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9V 2.5A + 5V 3A dual independent BEC

Specifications

MCU：STM32F405
IMU：ICM42688-P(SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
USB Interface：Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target：LJIEE-F405

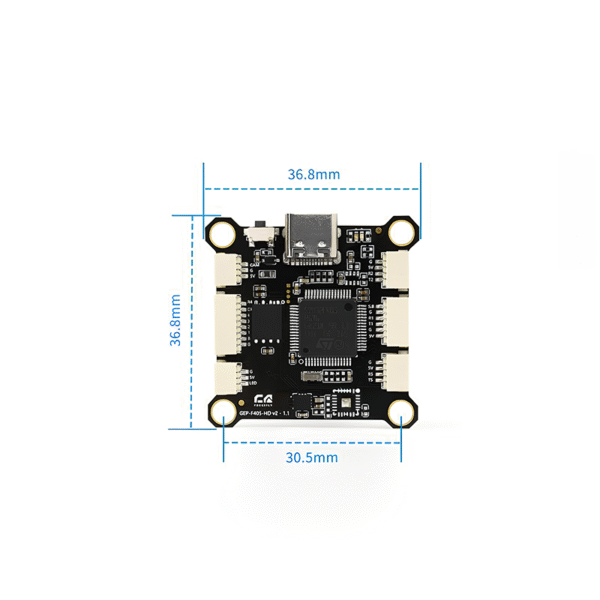

Size：36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
Input Voltage：3-6S LiPo
UART：6
Power Filter：Integrated LC filter
Weight：7.7g
